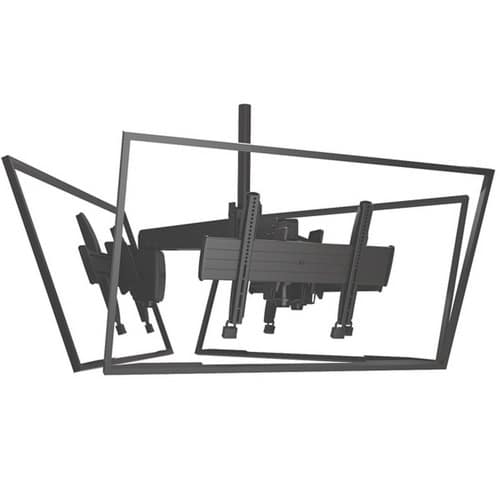

LCM Large Ceiling Multi-Directional Solutions-LCM3U
Triple-display ceiling mount for 32" - 65" displays, 125 lbs capacity, with Centris® fingertip tilt and 360° viewing capability
The Chief LCM3U is a multi-display ceiling solution designed to provide 360° viewing capability for up to three screens from a single column drop. This landscape-oriented mount system is engineered for professional installations where multiple displays must be viewed from various angles, such as in high-traffic commercial spaces or large meeting environments. The system utilizes Centris® fingertip tilt technology, allowing installers and end-users to effortlessly adjust display angles. It features a continuous tilt range with four set locking points to ensure precise positioning and repeatability. This unit is UL Listed and TAA compliant. This mount is designed for use with traditional 1.5" NPT or the newer CPA pinned ceiling plates and column systems. Please note that the ceiling plate and extension column must be ordered separately to complete the installation. The mount supports a total weight capacity of 125 lbs (56.7 kg) and accommodates VESA patterns from 200 x 200mm to 600 x 400mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 46.6 in (118.4 cm) |
| Height | 18.2 in (46.2 cm) |
| Overall Dimensions | 18.2" x 46.6" x 46.6" (462 x 1184 x 1184 mm) |
| Shipping Weight | 108 lbs (49 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 46.6 in (118.4 cm) |
| Adjustability | Tilt |
All other specifications 11
| Adjustments | Roll: 3° |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +5° and - 20° |
| UPC | 841872159508 |
| VESA Mounting Pattern | 200 x 200mm - 600 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Truss Clamp - CPA Compatible
CPA380$138.40
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Unistrut Adapter
CMA370$23.20
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate in White
CMA115W$63.20
Verified fitment
Questions about this part
Will the LCM3U fit my specific display?
This mount is verified against 11,345 display models from 305 manufacturers, including Sony 55BZ35P, LG 32CL40, and Panasonic 55VW3KD.
What else do I need to buy to complete this installation?
You must order a ceiling plate and an extension column separately. This SKU is the display mount only.
What type of ceiling connection is required for this mount?
The LCM3U is compatible with traditional 1.5" NPT systems as well as the new CPA pinned ceiling plates and column systems.
How is the display tilt adjusted on the LCM3U?
It utilizes Centris® fingertip tilt technology, allowing for effortless adjustment through a tilt range of +5° to -20°.
Which document should I use for submittals or installation?
The FCA3U LCM3U Installation Manual is available for installation guidance, and the LCM3U Technical Drawing can be used for submittals.
