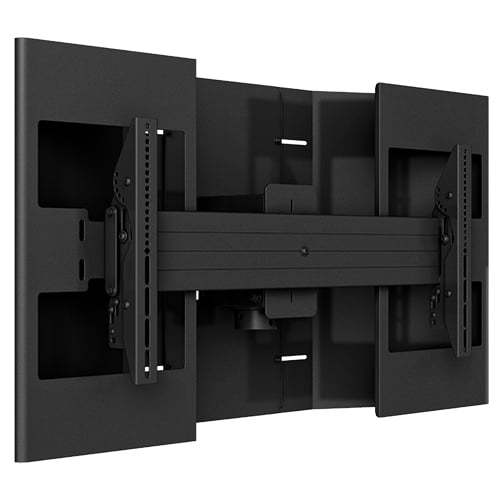

Large Outdoor Flat Panel Single Ceiling and Pedestal Mount System - OD45
Outdoor mounting system for 42"–65" displays, 250 lbs capacity, supports ceiling and pedestal installations
The Chief OD45 is a comprehensive outdoor mounting system designed to hold a single display for ceiling or pedestal installations. This kit includes the OLCM1U Outdoor Flat Panel Single Ceiling and Pedestal Mount (Large), the ODAC0405B Outdoor Ceiling Column measuring 4' - 5' (1.22m-1.52m) in length, the ODA330B Outdoor Concrete Ceiling and Pedestal Plate, and the ODAPCVRB Outdoor Plate Cover. Engineered to withstand harsh environments, this system is built to resist rain, humidity, ocean air, sun exposure, and high winds. It is wind-compatible up to a 2000 ft-lbs maximum moment force, facilitating engineering calculations for various local safety and installation requirements. The mount accommodates displays from 42" to 65" (1067mm - 1651mm) with VESA patterns ranging from 200 x 100mm to 800 x 400mm. With a weight capacity of 250 lbs (113.4 kg) and a tilt range of +7.6° to -20°, it provides necessary viewing adjustments for outdoor orientations. This TAA compliant and UL Listed assembly is finished in black for a professional appearance in any landscape orientation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 4' - 5' (1.22m-1.52m) |
| Shipping Dimensions | 48" x 40" x 42" (121.9 x 101.6 x 106.7 cm) |
| Shipping Weight | 178 lbs (80.7 kg) |
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | Ceiling Plates and Adapters |
| Adjustability | Tilt |
| Application | CeilingPole |
All other specifications 9
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| Tilt | +7.6° to -20° |
| UPC | 841872175867 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the Chief OD45 fit my outdoor display?
This system is designed for displays between 42" and 65" (1067mm - 1651mm) featuring VESA patterns from 200 x 100mm up to 800 x 400mm.
What is included in the OD45 mounting kit?
The bundle includes the OLCM1U Large mount, the 4' - 5' (1.22m-1.52m) ODAC0405B ceiling column, the ODA330B concrete plate, and the ODAPCVRB plate cover.
Can this mount be used in high-wind or coastal areas?
Yes, it is built to withstand rain, humidity, ocean air, and sun, with a wind-compatibility rating up to 2000 ft-lbs maximum moment force.
How much weight can the OD45 system support?
The system has a total weight capacity of 250 lbs (113.4 kg) for a single display installation.
What mounting surface is required for the ODA330B plate?
The ODA330B is specifically designed as an outdoor concrete ceiling and pedestal plate for secure mounting.
