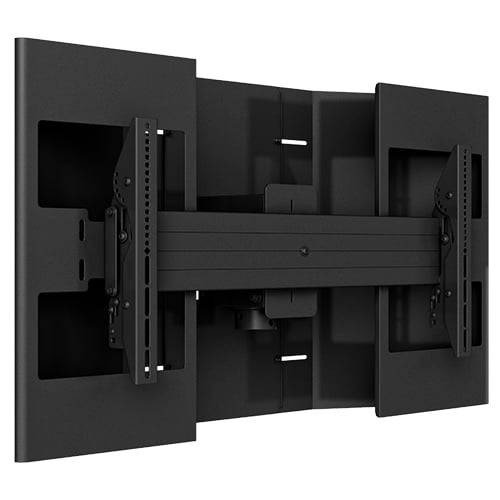

Large Outdoor Flat Panel Single Ceiling and Pedestal Mount System - OD34
Outdoor single display mount system for 42"–65" screens, 250 lbs capacity, with tilt adjustment and weatherproof design
The Chief OD34 is a large outdoor flat panel single ceiling and pedestal mount system designed to withstand harsh environmental conditions, including rain, high winds, humidity, and ocean air. This weatherproof system meets UL 2442 Part 2 standards and utilizes corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware to ensure durability in exterior installations. This TAA-compliant kit is designed for a single display in landscape orientation and is wind-compatible up to a 2000 ft-lbs maximum moment force, providing a reliable solution for high-exposure environments. The OD34 system is delivered in three separate components—the OLCM1U mount, the ODAC0304B column, and the ODA330B plate—allowing for a manageable four-step installation process that simplifies lifting and positioning on site. This kit provides the necessary components for either a ceiling or floor-mounted installation, utilizing a column length ranging from 3' to 4' (0.91m - 1.22m).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 3' - 4' (0.91m - 1.22m) |
| Shipping Dimensions | 48" x 40" x 42" (121.9 x 101.6 x 106.7 cm) |
| Shipping Weight | 176 lbs (79.8 kg) |
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | Ceiling Plates and Adapters |
| Adjustability | Tilt |
| Application | CeilingPole |
All other specifications 9
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| Tilt | +7.6° to -20° |
| UPC | 841872175850 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the Chief OD34 fit my outdoor display?
The OD34 is compatible with most displays featuring a VESA pattern up to 800 x 400mm. It is designed for single displays between 42" and 65" in landscape orientation.
What mounting hardware and plates are included in this kit?
This bundle includes the OLCM1U mount, the ODAC0304B 3-4' outdoor ceiling column, the ODA330B outdoor concrete ceiling and pedestal plate, and the ODAPCVRB outdoor plate cover.
What is the weight capacity and tilt range of the OD34?
The system supports a maximum weight of 250 lbs (113.4 kg) and provides an adjustable tilt range of +7.6° to -20°.
How is the OD34 installed in outdoor environments?
The kit is designed for either ceiling or pedestal mounting. It features a four-step installation process where components are kept separate to allow for a safer, more manageable lifting load.
Is the OD34 rated for coastal or high-wind areas?
Yes, the system is designed to withstand ocean air and high winds, with a wind-compatibility rating of up to 2000 ft-lbs maximum moment force.
