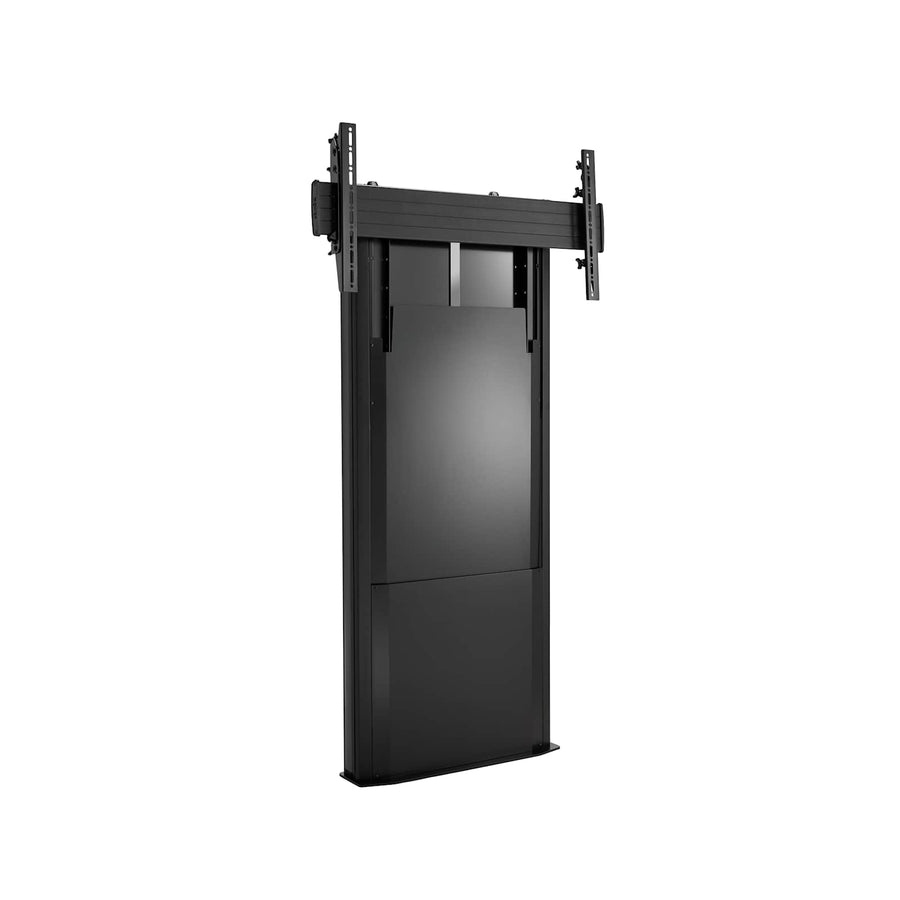

Large Fusion® Dynamic Height Adjustable Floor Support
Dynamic height adjustable floor support for interactive displays, featuring 15.75" of vertical travel and a 122-180 lbs capacity
The Chief LFD1U is a dynamic height adjustable floor support designed specifically for interactive applications in environments like boardrooms and classrooms. This solution is ideal for scenarios where the wall structure is unable to support the heavy load of a large-format display. The height adjustable box provides ultra-smooth vertical travel, allowing users to move the display up and down manually with almost no effort. This unit offers a total of 15.75" (400 mm) of dynamic height adjustment, with starting heights that can be set at 3" (76 mm) intervals over a 15" (381 mm) span. This floor-based application supports a weight capacity of 122 - 180 lbs (55.4 - 82 kg) for a single display. The LFD1U is UL Listed and includes an integrated security flag to protect equipment. For professional system integration, a full line of accessories can be installed on the mount, allowing the entire assembly to be adjusted together as a single unit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.3 in (16 cm) |
| Dynamic Height Adjustment | 15.75” (400 mm) |
| Height | 64.4 in (163.6 cm) |
| Overall Dimensions | 64.4" x 36.8" x 6.3" (1636 x 935 x 160 mm) |
| Shipping Weight | 137 lbs (62.1 kg) |
| Weight Capacity | 122 - 180 lbs (55.4 - 82 kg) |
| Width | 36.8 in (93.5 cm) |
| Adjustability | Height AdjustableMicro-Adjustable |
All other specifications 10
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Height Assist |
| TAA Compliant | No |
| UPC | 841872168142 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Carts and Stands Medium CPU Holder - FCA651B
FCA651B$265.60
Fusion® Small Storage Accessory, PC
FCA510$200.80

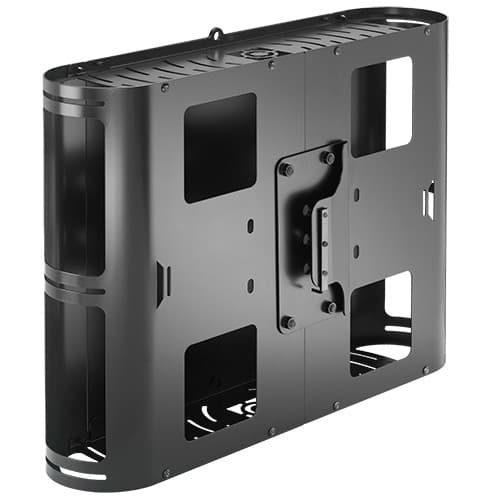

Fusion® Carts and Stands Large CPU Holder - FCA650B
FCA650B$358.40
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00

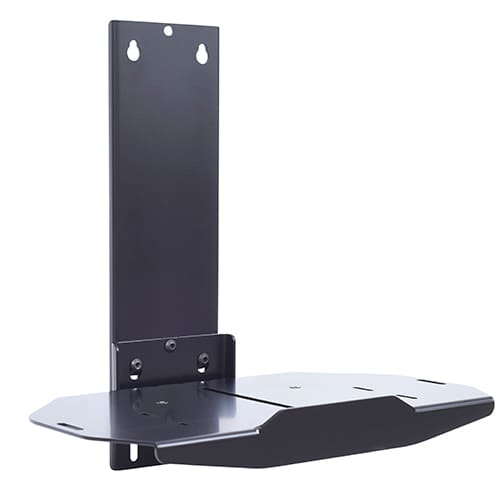

Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Verified fitment
Questions about this part
Will the Chief LFD1U fit my display?
This mount is verified against 1,470 display models from 125 manufacturers, including Samsung 650FP, Sony FW98BZ53L, LG 100QNED85AU, Panasonic LH86QM1KD, Philips 37HF7444, and Sharp 4TB80CT1U.
How much vertical adjustment does the LFD1U provide?
The LFD1U provides 15.75" (400 mm) of dynamic height adjustment, allowing for fast, smooth vertical travel by hand.
What is the weight capacity for this floor support?
The unit is designed to support a single display with a weight capacity between 122 lbs (55.4 kg) and 180 lbs (82 kg).
Can I add component shelves or CPU holders to this mount?
Yes, you can install a variety of accessories such as the FCA821 14-inch camera shelf, FCA650B Large CPU Holder, or FCA813 Low-Profile Shelf.
Which documents are available for submittals?
Technical drawings, CAD drawings (dwg), Revit models (rfa), and the LFD1U Installation Manual are all available for professional planning.
