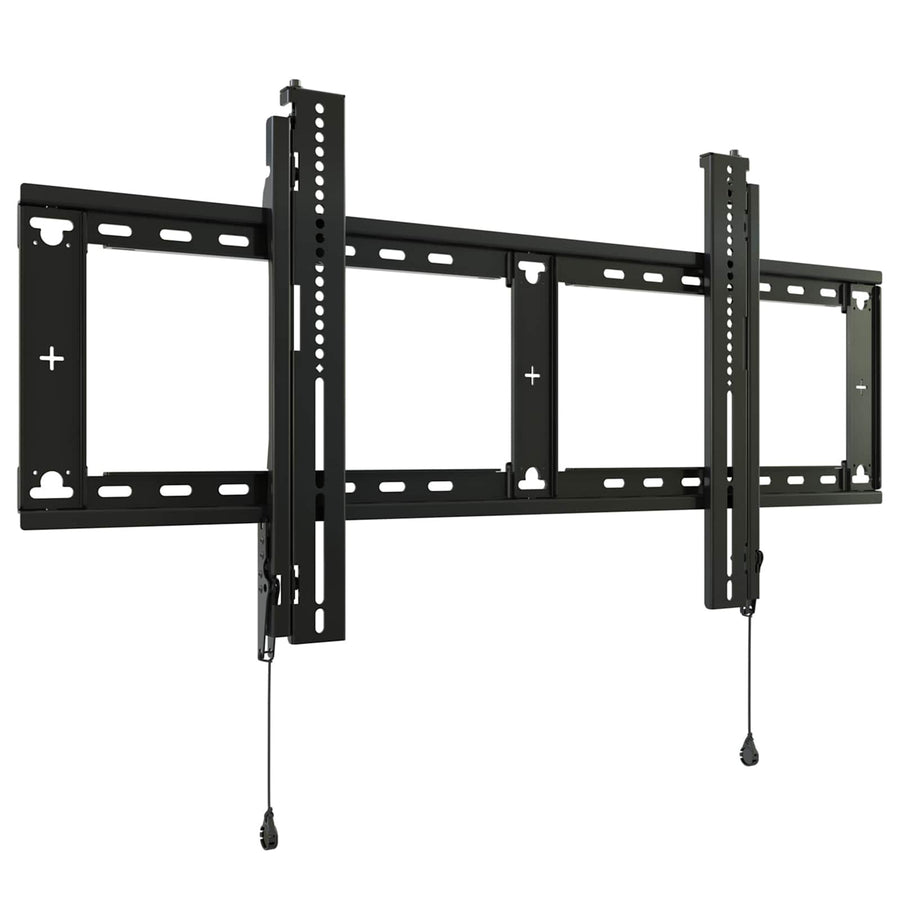

Large Fit™ Fixed Display Wall Mount
Low-profile fixed wall mount for 43"-86" displays, 200 lbs capacity, featuring 0.75" post-installation leveling
The Chief RLF3 is a large fixed display wall mount designed for typical display sizes ranging from 43" to 86". This universal solution is UL Listed and features a low-profile 1" (25 mm) depth to facilitate ADA compliance in professional AV environments. The redesigned rigid wall plate is engineered for dual-stud compatibility and supports weight capacities up to 200 lbs (90.7 kg). To ensure perfect screen positioning, the mount utilizes a toolless GlideLock lateral shift system and a kickstand for easy access to power and signal connections. Installers can achieve precise alignment via a 0.75" (19 mm) manual height adjustment screw located on the back. The open wall plate design provides flexibility when mounting around power and data wall boxes. This RLF3 mount supports VESA patterns up to 960 x 450 mm and is verified against 12,092 display models from 344 manufacturers, including the Sony 55BZ30P and Samsung 400MX.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1 in (2.5 cm) |
| Height | 19.19 in (48.7 cm) |
| Manual Height Adjustment | 0.75 in (19.1 mm) |
| Minimum Depth | 1 in (2.5 cm) |
| Overall Dimensions | 19.19" x 38" x 1" (559 x 965 x 25mm) |
| Shipping Weight | 14.99 lbs (6.8 kg) |
| Typical Screen Size | 43"- 86" (1092mm - 2184mm) |
| Wall Stud Compatibility | Dual Stud |
All other specifications 11
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 38 in (96.5 cm) |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872176635 |
| VESA Mounting Pattern | 100 x 100mm - 960 x 450mm |
| Certifications | UL Listed |
Resources
You'll need these with it
PAC526, Large In-Wall Storage Box
PAC526$116.80
PACSBM Universal Soundbar Mount
PACSBM$68.00
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
PAC525, In-Wall Storage Box
PAC525$79.20
CMK50 CordMate II Kit
CMK50$50.15
Metal Stud Anchor Kit - 4 Anchors
PAC115$27.20
1 RU Flanged Blank Rack Panel, Steel
EB1$17.10
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Da-Lite Floating Mounting Bracket White
77027$106.40
Verified fitment
Questions about this part
Will the Chief RLF3 fit my display?
The RLF3 is verified against 12,092 display models from 344 manufacturers, including Sony 55BZ30P, Samsung 460CX, LG 100QNED8, and Philips 37HF7444.
How do I level the display after it is mounted?
The RLF3 features a 0.75" (19 mm) manual height adjustment screw that allows for precise post-installation leveling.
What tools are required for installation?
The installation process requires a 10" (254 mm) ball end hex-key, which is included with the mount.
Does this mount provide access to rear connections?
Yes, the mount includes a built-in kickstand to provide easy access to power and signal connections once the display is mounted.
What accessories are compatible with the RLF3?
Compatible accessories include the PAC526 Large In-Wall Storage Box and the PACSBM Universal Soundbar Mount.
