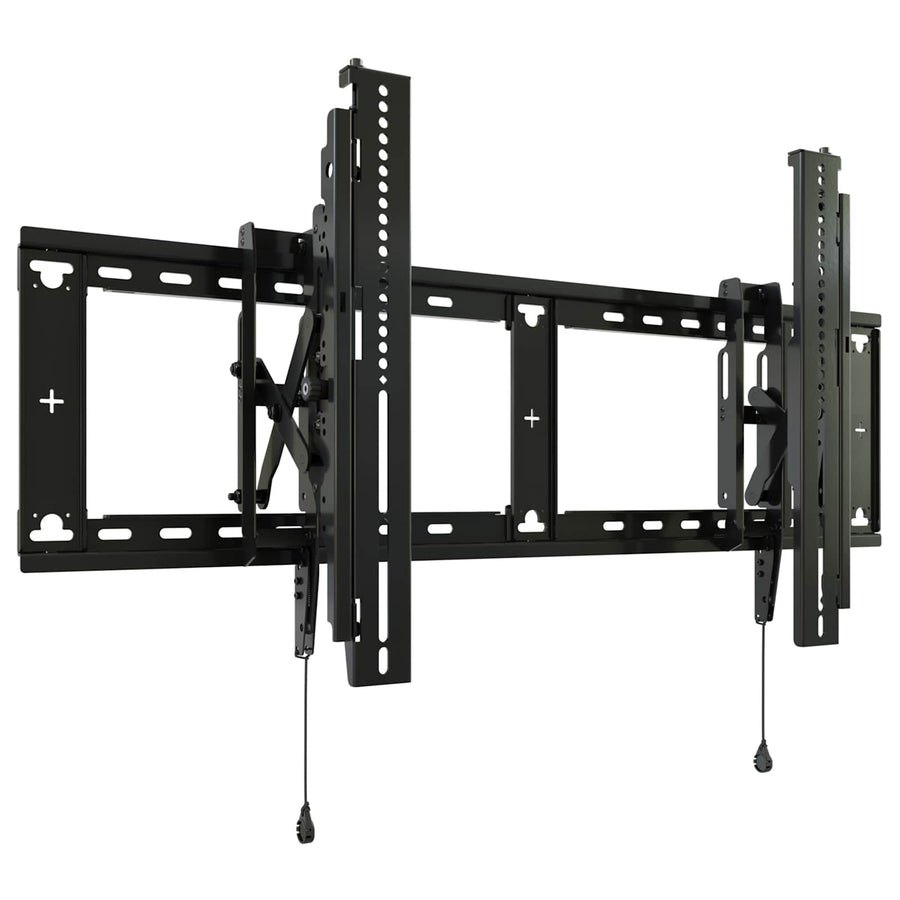

Large Fit™ Extended Tilt Display Wall Mount
Extended tilt wall mount for 43"– 85" displays, 150 lbs capacity, with +/- 10° tilt and 6" maximum extension
The Chief RLXT3 is a large extending tilt display wall mount designed for 43" to 85" typical display sizes. This mount supports VESA mounting patterns up to 863 x 450 mm and is UL safety standard approved. For installers managing large-format screens, the RLXT3 provides a maximum extension of 6" (152 mm) from the wall, while maintaining a minimum depth of 2.67" (68 mm) when fully retracted. The mount features a +/- 10° tilt range, allowing users to adjust the viewing angle for optimal positioning. To simplify the finishing process, it includes 0.75" (19 mm) post-installation manual height adjustment via a leveling screw and a 10" (254 mm) ball end hex-key. The rigid wall plate supports up to 150 lbs (68 kg) and features an open design to accommodate flexible positioning around existing power and data wall boxes. Additionally, toolless GlideLock lateral shift and a kickstand for cable access assist with final screen positioning and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.67 in (6.8 cm) |
| Height | 19.18 in (48.7 cm) |
| Manual Height Adjustment | 0.75 in (19.1 mm) |
| Maximum Extension | 6 in (15.2 cm) |
| Minimum Depth | 2.67 in (6.8 cm) |
| Overall Dimensions | 19.18" x 38 "x 2.67" (487 x 965 x 68mm) |
| Shipping Weight | 21.61 lbs (9.8 kg) |
| Typical Screen Size | 43"- 85"(1092mm - 2159mm) |
All other specifications 13
| Wall Stud Compatibility | Dual Stud |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 38 in (96.5 cm) |
| Adjustability | Extension, Tilt |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +/- 10° |
| UPC | 841872176659 |
| VESA Mounting Pattern | 100 x 100mm - 863 x 450mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PACSBM Universal Soundbar Mount
PACSBM$68.00
PAC526, Large In-Wall Storage Box
PAC526$116.80
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
PAC525, In-Wall Storage Box
PAC525$79.20
CMK50 CordMate II Kit
CMK50$50.15
Metal Stud Anchor Kit - 4 Anchors
PAC115$27.20
Cable Lock Accessory - PACLK1
PACLK1$24.00
1 RU Flanged Blank Rack Panel, Steel
EB1$17.10
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Da-Lite Floating Mounting Bracket White
77027$106.40
Verified fitment
Questions about this part
Will the Chief RLXT3 fit my display?
The RLXT3 is verified against 11,585 display models from 336 manufacturers, including Samsung 460CX, Sony 55BZ30P, and LG 100QNED8.
What do I need for the wall installation?
The mount is designed for dual stud compatibility and requires a wall plate that can support up to 150 lbs (68 kg).
How do I adjust the screen once it is mounted?
You can use the toolless GlideLock for lateral shift and a 0.75" (19 mm) leveling screw for height adjustments after installation.
Can I secure the display to prevent theft?
Yes, a theft deterrent locking option is available using a padlock or steel cable, though these accessories are not included.
What accessories are compatible with the RLXT3?
Compatible items include the PAC115 Metal Stud Anchor Kit, PACLK1 Cable Lock Accessory, and the PAC525 or PAC526 in-wall storage boxes.
