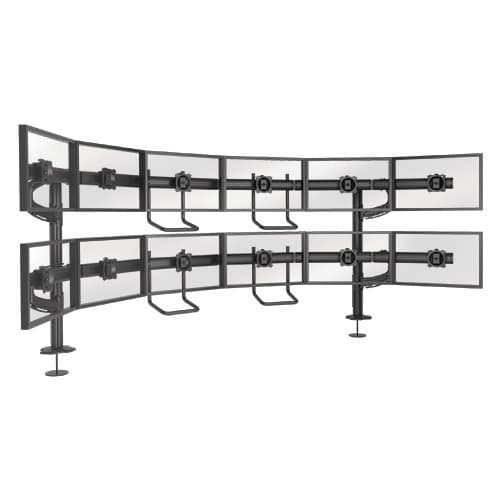

Kontour™ K4 6x2 Grommet Mounted Array
6x2 monitor array for 10-24" displays, 15 lbs capacity per screen, with focal depth adjustment and integrated cable management
The Chief K4G620B is a Kontour™ K4 6x2 Grommet Mounted Array designed for high-density workstation environments. This array provides a streamlined, modern aesthetic for professional settings such as trading desks, security centers, control rooms, and call centers where multiple users require ergonomic flexibility. The system is built for focal depth adjustment, allowing users to quickly re-position the bank of screens to their preferred viewing distance through an integrated handle. This TAA compliant mount supports 12 displays in both landscape and portrait orientations. Each position features Centris™ Fingertip Tilt for fine-tuning monitor angles and integrated cable management to maintain a clean workspace. The array is designed for desk or tabletop application, accommodating desktop thicknesses between 1" and 4.94" (25mm - 125.5 mm) via grommet or 1/2" thru-hole mounting. For specific display fitment, interface brackets like the FSB1U or KSA1250B may be required depending on the monitor manufacturer.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 5 in (12.7 cm) |
| Center of Display To Floor Table Range | Upper Row: Up to 43.6" (1107 mm) |
| Extension | 16.2 |
| Maximum Extension | 12.0 minimum |
| Minimum Depth | 32.1 in (81.5 cm) |
| Shipping Weight | 128 lbs (58.1 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
All other specifications 14
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Array Configuration | 6x2 |
| Color | Black |
| Desktop Thickness Range | 1" - 4.94" (25mm - 125.5 mm) |
| Mounting Method | Grommet and 1/2" Thru-Hole |
| Number of Displays | 12 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 12° |
| UPC | 841872162034 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Verified fitment
Questions about this part
Will this array work with my specific monitors?
The K4G620B is verified against 1,688 display models from 124 manufacturers. Examples of compatible hardware include Samsung 190S, Sony KDL19L4000, and LG 19EN33SB. Note that specific interface brackets may be needed for VESA patterns.
How do I mount this to my workstation?
This array is designed for tabletop application using either a grommet mount or a 1/2" thru-hole method. It is compatible with desk thicknesses ranging from 1" to 4.94" (25mm - 125.5 mm).
Can the monitors be adjusted after installation?
Yes. The array features articulating focal depth adjustment via an integrated handle. It also provides swivel, pan, and tilt capabilities, including Centris™ Fingertip Tilt for every monitor.
What is the weight capacity for this 6x2 array?
The array supports a weight capacity of 15 lbs (6.8 kg) per display. The total array configuration accommodates 12 screens across the 6x2 layout.
What additional accessories are needed for installation?
Depending on the VESA pattern of your display, you may need interface brackets such as the FSB1U, FSB4041, or the KSA1250B Quick-Connect for Dell monitors.
