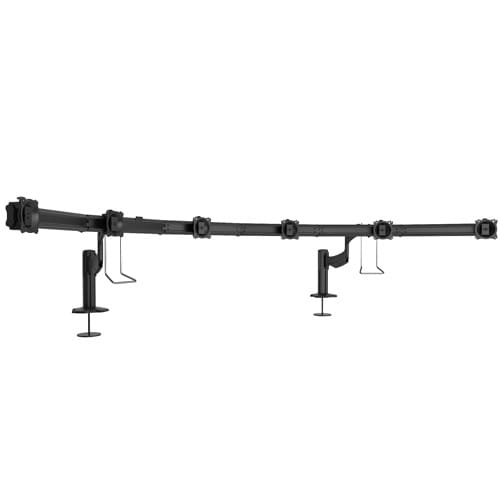

Kontour™ K4 6x1 Grommet Mounted Array
Grommet-mounted 6x1 monitor array for 10"-24" displays with articulating focal depth adjustment and integrated cable management
The Chief K4G610B Kontour™ K4 series provides a highly adjustable solution for multi-monitor workstations in environments such as control rooms, trading desks, and security centers. This 6x1 array configuration allows for rapid ergonomic reconfiguration by multiple users. The system features articulating focal depth adjustment to optimize the viewing distance for different users, aided by an integrated handle for quick manual adjustments. It supports six displays in either landscape or portrait orientation, accommodating typical screen sizes from 10" to 24" diagonals. The array offers Centris™ Fingertip Tilt for individual monitor positioning and includes integrated cable management to maintain a clean workspace. This TAA compliant mounting solution can be installed via a grommet or a 1/2" thru-hole. For varying desk setups, the mount supports a desktop thickness range of 1" to 4.94" (25 mm - 125.5 mm). The system is designed for professional workstations where visual alignment and ergonomic flexibility are required for high-intensity monitoring tasks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 5 in (12.7 cm) |
| Center of Display To Floor Table Range | 11.47" - 18.22" (291 mm - 463 mm) |
| Extension | 16.2 |
| Maximum Extension | 12.0 minimum |
| Minimum Depth | 32.1 in (81.5 cm) |
| Shipping Dimensions | 56.25" x 19" x 14" (142.9 x 48.3 x 35.6 cm) |
| Shipping Weight | 69 lbs (31.3 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
All other specifications 15
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Array Configuration | 6x1 |
| Color | Black |
| Desktop Thickness Range | 1" - 4.94" (25mm - 125.5 mm) |
| Mounting Method | Grommet and 1/2" Thru-Hole |
| Number of Displays | 6 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 12° |
| UPC | 841872161723 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Verified fitment
Questions about this part
Will the K4G610B fit my monitors?
The array is verified for 1,709 display models from 125 manufacturers, including the Samsung 1701MP, Sony KDL19L4000, and LG 19EN33T. It supports displays with 75 x 75mm or 100 x 100mm VESA patterns.
What tools and hardware are required for installation?
Installation requires a 5 in (12.7 cm) ceiling plate and can be mounted using either a grommet or a 1/2" thru-hole method. The K4G4X 5X 6X Installation Manual provides specific procedure details.
How do I adjust the viewing distance for different users?
The K4G610B features articulating focal depth adjustment with an integrated handle, allowing users to quickly re-position the bank of screens to their preferred distance.
What accessories are needed for non-standard VESA patterns?
For non-standard patterns, you may need interface brackets such as the FSB4041 (200 x 200mm VESA) or the FSB4073 (50x50mm VESA) depending on your specific display requirements.
How much weight can this 6x1 array support?
The system has a total weight capacity of 15 lbs (6.8 kg) across the array, and the center of display to floor range is 11.47" to 18.22" (291 mm - 463 mm).
