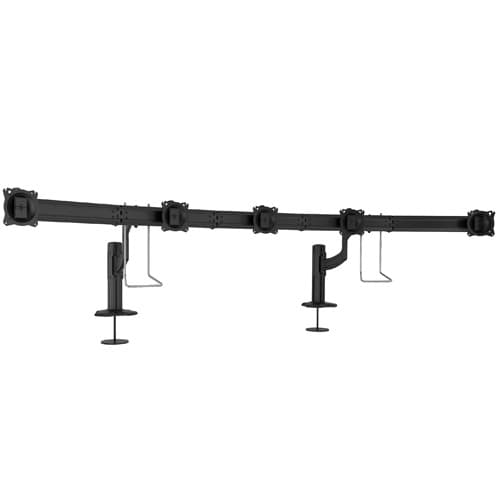

Kontour™ K4 5x1 Grommet Mounted Array
5x1 monitor array for 10"–24" displays, featuring focal depth adjustment and grommet mounting
The Chief K4G510B is a Kontour™ K4 5x1 array designed for high-density workstation environments. This grommet-mounted array provides articulated focal depth adjustment, allowing multiple users in shared environments—such as control rooms, trading desks, and call centers—to re-position the bank of five screens to their preferred viewing distance. The array supports 10" to 24" (254mm to 609.6 mm) diagonal displays in both landscape and portrait orientations. For ergonomic precision, the system includes Centris™ Fingertip Tilt and integrated handles for quick adjustment. Installation is versatile, supporting either a grommet mount or a 1/2" thru-hole method. The K4G510B is TAA compliant and accommodates desktop thicknesses ranging from 1" to 4.94" (25mm to 125.5 mm). To achieve specific VESA patterns or specialized fitment, interface brackets such as the FSB4041 or KSA1250B may be required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 6 in (15.2 cm) |
| Center of Display To Floor Table Range | 11.47" - 18.22" (291 mm - 463 mm) |
| Extension | 16.2 |
| Maximum Extension | 12.0 minimum |
| Minimum Depth | 23.3 in (59.2 cm) |
| Shipping Dimensions | 56.25" x 19" x 14" (142.9 x 48.3 x 35.6 cm) |
| Shipping Weight | 69 lbs (31.3 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
All other specifications 15
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Array Configuration | 5x1 |
| Color | Black |
| Desktop Thickness Range | 1" - 4.94" (25mm - 125.5 mm) |
| Mounting Method | Grommet and 1/2" Thru-Hole |
| Number of Displays | 5 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 12° |
| UPC | 841872161716 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Verified fitment
Questions about this part
Will this mount fit my specific monitors?
This array is verified against 1,667 display models from 125 manufacturers, including the LG 19EN33S, Samsung 2243QW, and Sony KDL19BX200B. It supports VESA patterns of 75 x 75mm and 100 x 100mm.
What do I need to purchase to complete the installation?
Depending on your monitor, you may need interface brackets such as the FSB4041 for 200 x 200mm VESA or the KSA1250B for Dell® monitors. A Kontour™ Laptop Tray (KRA300B) is also available as an accessory.
How much weight can the K4G510B array support?
The array has a total weight capacity of 15 lbs (6.8 kg) distributed across the displays.
What are the desktop thickness and mounting requirements?
The mount supports desktop thicknesses between 1" and 4.94" (25mm to 125.5 mm) and can be installed via a grommet or a 1/2" thru-hole.
Which documents are available for submittals?
You can access the K4G510 Technical Drawing, the K4G510 CAD Drawing, or the K4G4X 5X 6X Installation Manual through the resources section.
