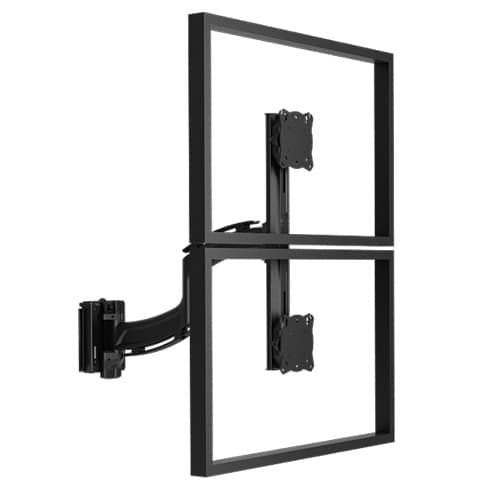

Kontour™ K4 1x2 Vertical Focal Depth-Adjustable Array, Slat-Wall Mounted
1x2 vertical array for 2 monitors up to 24" in landscape or portrait, with focal depth adjustment and Centris™ Fingertip Tilt
The Chief K4S120B is a Kontour™ K4 series focal depth-adjustable array configured in a 1x2 vertical arrangement. Designed for high-use environments like trading desks, security consoles, and call centers, this array allows multiple users to quickly re-position the two-monitor bank to their preferred viewing distance. The system supports two monitors up to 24" in either landscape or portrait orientation. Users can achieve precise ergonomic positioning through articulated focal depth adjustment and integrated handle for quick manual movement. This model features Centris™ Fingertip Tilt for effortless vertical positioning and provides tool-free, integrated cable management to maintain a streamlined, modern aesthetic. This TAA compliant mounting solution can be installed on either a flat wall or a slat-wall. Because it is designed for rapid ergonomic adjustment, it is highly effective in multi-user settings where screen positioning changes frequently.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Extension | 16.2 |
| Maximum Extension | 16.2 in (41.2 cm) |
| Minimum Depth | 4.8 in (12.2 cm) |
| Shipping Dimensions | 41.25" x 18.5" x 5.5" (104.8 x 47 x 14 cm) |
| Shipping Weight | 19.5 lbs (8.9 kg) |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopSlat-Wall |
All other specifications 10
| Array Configuration | 1x2 |
| Color | Black |
| Mounting Method | Wall Mount |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° vertical tilt |
| UPC | 841872162911 |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
Laptop & Tablet Tray, Silver
KRA300S$88.00
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Questions about this part
Will the K4S120B fit my 24" monitors?
Yes, this array supports up to 24" monitors in both landscape and portrait orientations.
What do I need to buy to mount my specific monitor?
You will likely need a specific interface bracket, such as the FSB4243B or FSB4041, depending on your monitor's VESA pattern.
How much can the displays be extended from the wall?
The array features a maximum extension of 16.2 in (41.2 cm) from a minimum depth of 4.8 in (12.2 cm).
Can this be mounted on a slat-wall?
Yes, the K4S120B is designed for both standard wall mounting and slat-wall applications.
How do I adjust the vertical tilt of the screens?
The array utilizes Chief's Centris™ Fingertip Tilt technology, allowing for +/- 10° of vertical tilt adjustment.
