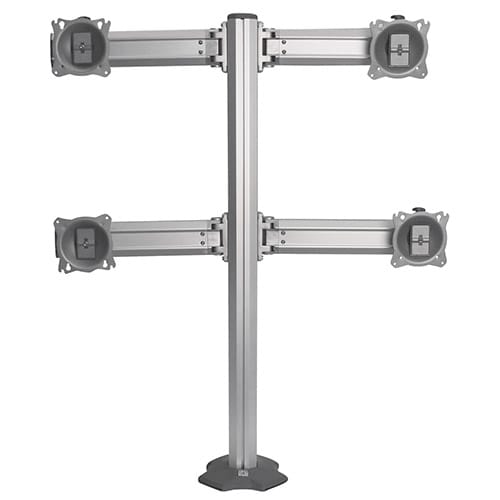

Kontour™ K3 Grommet Mounted 2x2 Array - K3G220S
Grommet-mounted 2x2 array for up to four 27" displays with independent height and tilt adjustment
The Chief K3G220S provides a stable and organized 2x2 array solution for professional workstation environments. This Kontour K3 series static multi-monitor array mount is designed to support up to four displays, with each unit accommodating a typical screen size of up to 27" (686mm) diagonal. It features a silver finish and is TAA compliant for use in government or regulated environments. Installation is achieved via a grommet mount, compatible with desktop thicknesses ranging from 0.5" (13mm) to 5" (127mm) and grommet hole sizes between 0.38" (10mm) and 3.5" (89mm). This mount allows for flexible positioning through independent height and tilt adjustments, with a tilt range of -12°. To ensure a professional finish, the system includes a post-installation leveling roll for fine-tuned alignment. Each display is secured using standard VESA mounting patterns of 75 x 75mm or 100 x 100mm. For varied workspace setups, this unit is also compatible with the KRA500S K3 Series Desk Clamp Accessory, allowing the array to be transitioned from a grommet mount to a clamp-on configuration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.03 in (17.9 cm) |
| Height | 38.81 in (98.6 cm) |
| Overall Dimensions | 38.81" x 34.02" x 7.03" (985.8 x 864.1 x 178.5mm) |
| Shipping Weight | 30 lbs (13.6 kg) |
| Typical Screen Size | Up to 27" (686mm) diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Width | 34.02 in (86.4 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 16
| Application | Desk-TabletopGrommet Mount |
| Array Configuration | 2x2 |
| Color | Silver |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10mm - 89mm) |
| Mounting Method | Grommet Mount |
| Number of Displays | 4 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | -12° |
| UPC | 841872157818 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
K3 Series Desk Clamp Accessory, Silver
KRA500S$84.80
Laptop & Tablet Tray, Silver
KRA300S$88.00
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the K3G220S fit my specific monitors?
This array is verified against 5,025 display models from 136 manufacturers. Examples of compatible models include Samsung 150MP, LG 17LS5R, Philips 10BDL4151T, Dell 1900FP, Sharp 1T-C32FA2KF2NB, and Toshiba 15V300PR.
What is required for installation on my desk?
The K3G220S is a grommet mount designed for desks with a hole size between 0.38" (10mm) and 3.5" (89mm) and a thickness between 0.5" (13mm) and 5" (127mm).
What accessories are needed for the K3G220S?
While this is a complete 2x2 array, you may require specific interface brackets for non-standard VESA patterns, such as the FSB4041 for 200 x 200mm VESA, or the KRA300S Laptop & Tablet Tray.
Can I switch this from a grommet mount to a desk clamp?
Yes, the K3G220S is compatible with the KRA500S K3 Series Desk Clamp Accessory, Silver, which allows for an alternative mounting style.
How is the monitor positioning adjusted after mounting?
The array provides independent height and tilt adjustment for each of the four displays, and includes a post-installation leveling roll to help align the screens.
