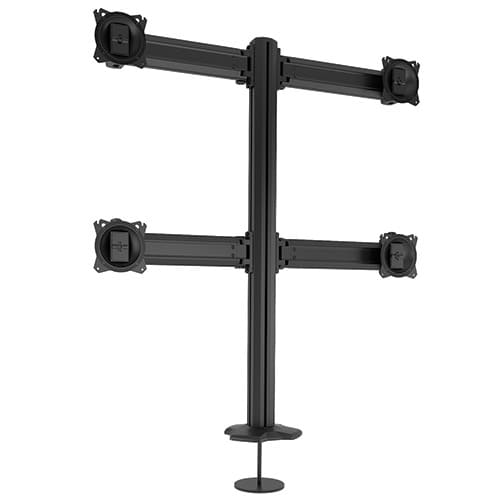

Kontour™ K3 Grommet Mounted 2x2 Array - K3G220B
Grommet-mounted 2x2 array for 4 displays up to 27" diagonal, featuring independent tilt and height adjustment
The Chief K3G220B is a static multi-monitor array designed for professional workstation environments like control rooms, security desks, and financial service hubs. This 2x2 configuration accommodates up to four displays, each with a typical screen size of up to 27" (686mm) diagonal. The mount provides a stable, streamlined aesthetic for high-density viewing tasks. Installation is achieved via a grommet mount on desktops with a thickness range of 0.5" to 5" (13mm to 127mm), and it is compatible with grommet hole sizes from 0.38" to 3.5" (10mm to 89mm). Each of the four monitors can be individually adjusted for height and tilt to optimize the viewing angle, with tilt reaching up to -12°. This TAA-compliant solution includes tool-free integrated cable management to maintain a clean workspace. For users requiring different mounting styles, the K3 series also offers free-standing options or the KRA500B desk clamp accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.03 in (17.9 cm) |
| Height | 38.81 in (98.6 cm) |
| Overall Dimensions | 38.81" x 34.02" x 7.03" (985.8 x 864.1 x 178.5mm) |
| Shipping Weight | 30 lbs (13.6 kg) |
| Typical Screen Size | Up to 27" (686mm) diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Width | 34.02 in (86.4 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 16
| Application | Desk-TabletopGrommet Mount |
| Array Configuration | 2x2 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10mm - 89mm) |
| Mounting Method | Grommet Mount |
| Number of Displays | 4 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | -12° |
| UPC | 841872157030 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
K3 Series Desk Clamp Accessory, Black
KRA500B$84.80
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the K3G220B fit my specific monitors?
This mount is verified against 5,098 display models from 135 manufacturers, including Samsung 150MP, LG 17LS5R, Philips 10BDL3051T, Dell 1801FP, and Toshiba 15DL75.
What do I need to buy to use the K3G220B with a desk clamp instead of a grommet?
To use this array as a desk clamp instead of a grommet mount, you will need to purchase the KRA500B K3 Series Desk Clamp Accessory.
How do I adjust the monitors once they are installed?
The K3G220B allows for independent height and tilt adjustment for each display, and includes post-installation leveling rolls to fine-tune the array alignment.
What VESA pattern is required for the displays?
The mounting interface supports standard VESA patterns of 75 x 75mm and 100 x 100mm.
Can I add a laptop to this workstation setup?
Yes, the KRA300B Kontour K3 Laptop Tray Accessory is compatible with this series of multi-monitor arrays.
