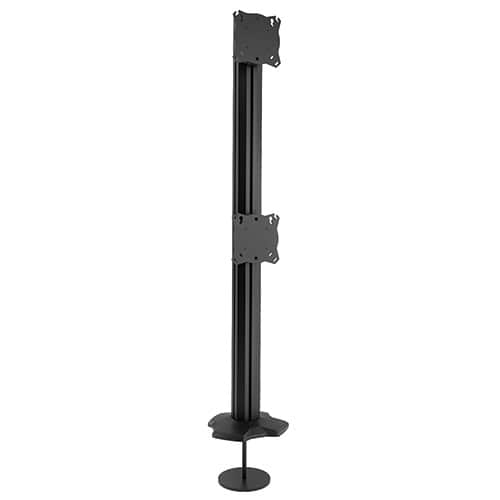

Kontour™ K3 Grommet Mounted 1x2 Array - K3G120B
Grommet-mounted 1x2 monitor array for up to 30" displays, featuring height and tilt adjustment with integrated cable management
The K3G120B is a Kontour™ K3 Series static multi-monitor array designed for 1x2 configurations. This grommet-mounted solution provides a stable and professional workstation setup for high-intensity environments like control rooms, financial service desks, and security stations. Each of the two displays can be positioned independently through height and +/- 10° vertical tilt adjustments, allowing for precise ergonomic alignment. This array is compatible with VESA mounting patterns of 75 x 75mm and 100 x 100mm. Installation is streamlined with tool-free integrated cable management to maintain a clean aesthetic. For installers requiring alternative mounting, the K3 series also offers free-standing options or a desk clamp via the KRA500B accessory. This TAA-compliant array is verified for use with a wide range of displays and supports both landscape and portrait orientations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.02 in (17.8 cm) |
| Height | 38.81 in (98.6 cm) |
| Overall Dimensions | 38.81" x 7.55" x 7.02" (985.8 x 191.8 x 178.2mm) |
| Shipping Weight | 19 lbs (8.6 kg) |
| Typical Screen Size | Up to 30" (762mm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 7.55 in (19.2 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 16
| Application | Desk-TabletopGrommet Mount |
| Array Configuration | 1x2 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10mm - 89mm) |
| Mounting Method | Grommet Mount |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° vertical tilt |
| UPC | 841872157023 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
K3 Series Desk Clamp Accessory, Black
KRA500B$84.80
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the K3G120B fit my specific monitors?
This array is verified against 6,301 display models from 207 manufacturers, including Samsung 152T, LG 17MB15T, Philips 14L45215, Dell 1800FP, Sharp 1T-C24FD2KF1FB, and NEC 1940CX.
What mounting hardware is required for installation?
The K3G120B is a grommet mount that requires a desk thickness between 0.5" and 5" (13mm - 127mm) and a grommet hole size between 0.38" and 3.5" (10mm - 89mm).
What accessories can I add to this workstation mount?
You can expand functionality with the KRA500B Desk Clamp Accessory for tabletop mounting or the KRA300B Kontour™ Laptop Tray.
Can I mount my monitors in portrait orientation?
Yes, the K3G120B supports both landscape and portrait orientations for flexible workstation setups.
Which technical drawings are available for submittals?
Installers can access the K3G120 Technical Drawing (PDF), CAD Drawing (dwg), and the K3 Series Installation Manual (PDF) via the resources tab.
