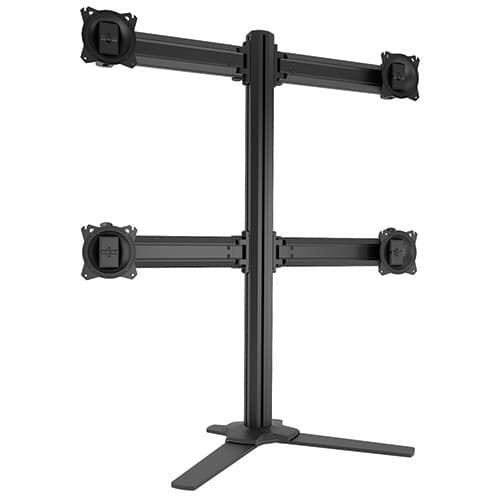

Kontour™ K3 Free Standing 2x2 Array - K3F220B
Freestanding 2x2 array mount for up to four 27" displays, featuring independent height, pan, and tilt adjustment
The Chief K3F220B is a Kontour™ K3 Series static multi-monitor array mount designed for professional workstation environments. This freestanding 2x2 array configuration supports up to four displays with a typical screen size of up to 27" (686mm) diagonal. To ensure precise monitor positioning, the system provides independent height, pan, and tilt adjustments for each individual display, including a -12° tilt range. The K3F220B is built with a streamlined modern aesthetic and includes tool-free integrated cable management to maintain a clean workspace. This unit is TAA compliant and supports both landscape and portrait orientations for maximum user flexibility. For installers requiring specific desk mounting, this series is also compatible with the KRA500B Desk Clamp Accessory. The mount accommodates a 75 x 75mm or 100 x 100mm VESA mounting pattern and features a post-installation leveling roll to ensure a perfectly aligned array.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.03 in (17.9 cm) |
| Height | 38.81 in (98.6 cm) |
| Overall Dimensions | 38.81" x 34.02" x 7.03" (985.8 x 864.1 x 178.5mm) |
| Shipping Weight | 35.21 lbs (16 kg) |
| Typical Screen Size | Up to 27" (686mm) diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Width | 34.02 in (86.4 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 16
| Application | Desk-TabletopFreestanding |
| Array Configuration | 2x2 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10mm - 89mm) |
| Mounting Method | Free Standing |
| Number of Displays | 4 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | -12° |
| UPC | 841872157016 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
K3 Series Desk Clamp Accessory, Black
KRA500B$84.80
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the K3F220B fit my specific monitors?
The K3F220B is verified against 4,645 display models from 112 manufacturers, including Samsung 150MP1, LG 17MB15T, Philips 14L45215, Dell 1801FP, Sharp AS173MBK, and Toshiba 15DL75.
Can I mount this using a desk clamp instead of freestanding?
Yes, while the K3F220B is a freestanding mount, it is compatible with the KRA500B K3 Series Desk Clamp Accessory for alternative mounting styles.
What VESA patterns are supported by this 2x2 array?
This mount supports VESA mounting patterns of 75 x 75mm and 100 x 100mm for each of the four displays.
How much weight can each monitor weigh?
The K3F220B supports a weight capacity of 15 lbs (6.8 kg) per display within the array.
What documentation is available for submittals?
Technical submittals can be completed using the K3F220 Technical Drawing (PDF) or the K3 Series Installation Manual (PDF).
