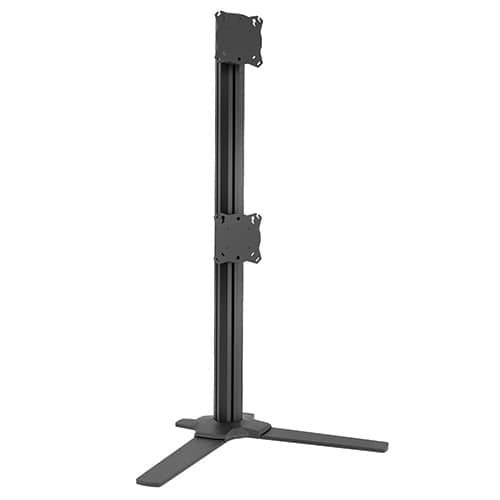

Kontour™ K3 Free Standing 1x2 Array - K3F120B
Free standing 1x2 multi-monitor array for displays up to 30" with independent tilt and height adjustment
The Chief K3F120B is a Kontour™ K3 series static multi-monitor array designed for workstation, security desk, and control room environments. This 1x2 configuration supports two displays up to 30" each, with a total weight capacity of 25 lbs (11.3 kg) per unit. The mount is designed for both landscape and portrait orientations to accommodate diverse user workflows. For installers requiring specific desk mounting, this unit can be converted from its standard freestanding setup using the KRA500B K3 Series Desk Clamp Accessory. The system features tool-free integrated cable management to maintain a clean aesthetic in professional settings like financial services or healthcare. Each display is independently adjustable for height and offers +/- 10° of vertical tilt. For submittals, the K3 Series Installation Manual (PDF) provides comprehensive mounting instructions, while the K3F120 Technical Drawing (PDF) offers essential dimensional data.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.5 in (39.4 cm) |
| Height | 38.81 in (98.6 cm) |
| Overall Dimensions | 38.81" x 22.68" x 15.5" (985.8 x 576 x 393.6mm) |
| Shipping Weight | 25.4 lbs (11.5 kg) |
| Typical Screen Size | Up to 30" (762mm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 22.68 in (57.6 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 16
| Application | Desk-TabletopFreestanding |
| Array Configuration | 1x2 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10mm - 89mm) |
| Mounting Method | Free Standing |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° vertical tilt |
| UPC | 841872157009 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
KRA300B, Kontour™ Laptop Tray Accessory
KRA300B$88.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
K3 Series Desk Clamp Accessory, Black
KRA500B$84.80
50x50mm VESA Interface Bracket
FSB4073$47.20
Quick-Connect Interface for Dell® Monitors KSA1250B-2
KSA1250B-2$36.80
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the K3F120B fit my monitors?
This mount is verified against 6,214 display models from 173 manufacturers. It supports VESA patterns of 75 x 75mm and 100 x 100mm for displays up to 30", including models like the Samsung 150MP, LG 17LS5R, and Dell 1801FP.
Can I use this as a desk clamp instead of freestanding?
Yes, while this SKU is a free-standing mount, you can utilize the KRA500B K3 Series Desk Clamp Accessory to secure it to a workstation.
What do I need to do for the installation?
The K3 Series Installation Manual (PDF) is the primary document for installation procedures. This array features integrated cable management for tool-free wire routing during setup.
How much weight can each display weigh?
The mount has a total weight capacity of 25 lbs (11.3 kg), which is shared across the two-display array configuration.
Does this mount support portrait orientation?
Yes, the Kontour K3 series supports both landscape and portrait display orientations to meet specific user ergonomic needs.
