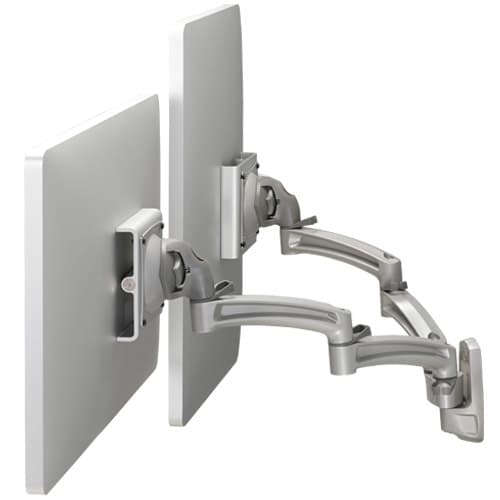

Kontour™ K2W Wall Mount Swing Arms, Dual Monitors - K2W220S
Dual monitor wall mount for 10-32" displays, 25 lbs capacity per monitor, with 17.7 in (45 cm) extension and +/- 15° tilt
The Chief K2W220S Kontour™ K2W Wall Mount Swing Arms, Dual Monitors provide an ergonomic 2x1 array configuration for two displays. This silver-finished mount supports 10-32" (254mm - 813mm) monitors with a weight capacity of 25 lbs (11.3 kg) per monitor. Designed for both landscape and portrait orientations, the arms offer a 17.7 in (45 cm) maximum extension and a minimum depth of 2.95 in (7.5 cm). The patented Centris™ Head allows for effortless tilt adjustments of +15° / -15° to optimize viewing angles for sitting or standing positions. This wall mount features a 3-step installation process and a quick-release monitor interface to simplify mounting and ongoing maintenance. For a professional appearance, the arms include tool-free cable management clips. This SKU is a silver variant of the Kontour™ K2W series, and it is compatible with OFB Furniture Brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 17.7 in (45 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 12
| Array Configuration | 2x1 |
| Color | Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Mounting Method | Wall Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160733 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Verified fitment
Questions about this part
Will the K2W220S fit my specific monitor?
This mount is verified against 5,513 display models from 216 manufacturers, including Samsung 152S, LG 15LA60, Sharp IT23M1U, Toshiba 14DL74, NEC 1940CX, and ViewSonic EP1030R.
What is required to complete the installation of this mount?
The K2W220S is a wall mount only. To use this with a desk or tabletop application, you will need to purchase separate KTA pole accessories to support the arms.
Can I adjust the orientation of my dual monitors?
Yes, the K2W220S supports both landscape and portrait orientations to accommodate your workstation setup.
How is the display tilt adjusted?
The Centris™ Head provides effortless tilt adjustment within a range of +15° to -15° for optimal viewing comfort.
What is the difference between this and the K2W220B?
The K2W220S is the silver finish version of this dual monitor array, whereas the K2W220B features a black finish.
