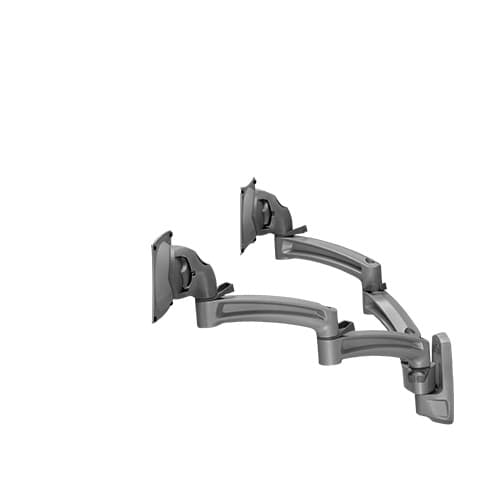

Kontour™ K2W Wall Mount Swing Arms, Dual Monitors - K2W220B
Dual wall mount for 10–32" displays, 25 lbs capacity per monitor, with tilt, extension, and swivel adjustability
The Chief K2W220B is a dual-display wall mount designed to optimize workstation ergonomics in office, healthcare, or public environments. This Kontour series arm provides a 2x1 array configuration, allowing users to position two monitors in either landscape or portrait orientation. Each arm offers 17.7 in (45 cm) of maximum extension and a minimum depth of 2.95 in (7.5 cm) when fully retracted. The Centris™ Head provides effortless tilt adjustability of +15° to -15°, ensuring optimal viewing angles for users in seated or standing positions. This black finish model supports displays ranging from 10 to 32" (254mm - 813mm) with a weight capacity of 25 lbs (11.3 kg) per monitor. For professional installations, it features tool-free cable management clips and an enhanced 3-step installation process with a quick-release monitor interface for efficient servicing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 17.7 in (45 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 12
| Array Configuration | 2x1 |
| Color | Black |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Mounting Method | Wall Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160726 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Verified fitment
Questions about this part
Will this mount fit my specific monitor?
The K2W220B is verified against 5,619 display models from 214 manufacturers, including Samsung 150MP, LG 15LA60, Sharp IT23M1U, Toshiba 14DL74, NEC 1740CX, and ViewSonic EP1020R.
What do I need to buy to complete the installation?
This SKU is a wall mount only. Depending on your setup, you may need accessories like the FSB1U Small Flat Panel Universal Interface Bracket or KSA1250B-2 Quick-Connect for Dell® Monitors.
How much weight can each arm actually hold?
Each monitor can weigh up to 25 lbs (11.3 kg). Note that this weight capacity applies per monitor, and the K2W220B is intended for wall mounting.
Can I use this mount in portrait orientation?
Yes, the K2W220B supports both landscape and portrait orientations to provide the desired ergonomic setup for the user.
Which document is required for submittals?
For technical layout and engineering data, you can refer to the K2W220 Technical Drawing or the K2W Series Installation Manual available in the resources section.
