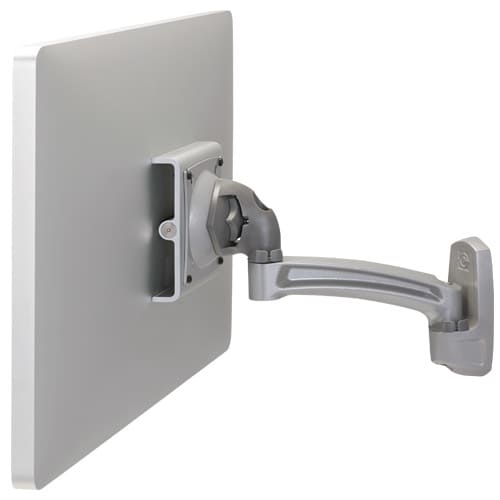

Kontour™ K2W Wall Mount Swing Arm, Single Monitor-K2W110S
Single monitor wall mount for landscape or portrait orientation, featuring 40 lbs capacity and 10.45 in maximum extension
The Chief K2W110S is a single monitor wall mount designed to provide ergonomic flexibility in office, healthcare, or public environments. This Kontour K2W series arm features a silver finish and a forged aluminum construction. The integrated Centris™ Head allows for a tilt range of +15° to -15°, enabling users to adjust viewing angles for optimal comfort while sitting or standing. For installation, this mount provides a minimum depth of 2.95 in (7.5 cm) and a maximum extension of 10.45 in (265.4 mm). The arm is designed to support a single display with a weight capacity of 40 lbs (18.1 kg). This wall-mounted solution is compatible with OFB Furniture Brackets and can be used in either landscape or portrait orientation. To maintain a clean professional appearance, the arm includes tool-free cable management clips.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 10.45 in (265.4 mm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Shipping Dimensions | 25.75" x 9.75" x 6.5"(654.1 x 247.7 x 165.1 mm) |
| Shipping Weight | 4.65 lbs (2.1 kg) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopWall |
| Color | Silver |
All other specifications 10
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Mounting Method | Wall Mount |
| Number of Arm Links | 1 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160672 |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Verified fitment
Questions about this part
Will the K2W110S fit my specific monitor?
This mount is verified against 3,668 display models from 198 manufacturers, including Dell 1707FP, Samsung 215TW, and LG 15LC1R.
What is the tilt range of the K2W110S arm?
The Centris™ Head provides a tilt adjustment of +15° to -15° for comfortable viewing in different seating positions.
Does this mount support dual monitor configurations?
No, the K2W110S is a single monitor arm; for dual monitor setups, see the KRA228B K2W Dual Monitor Upgrade Kit.
What is the maximum extension of this wall mount?
The arm provides a maximum extension of 10.45 in (265.4 mm) from the wall.
Which accessories are needed for specific mounting requirements?
Depending on your setup, you may need the FSB1U Small Flat Panel Universal Interface Bracket or custom brackets like the FSB4090B for Cisco EX90.
