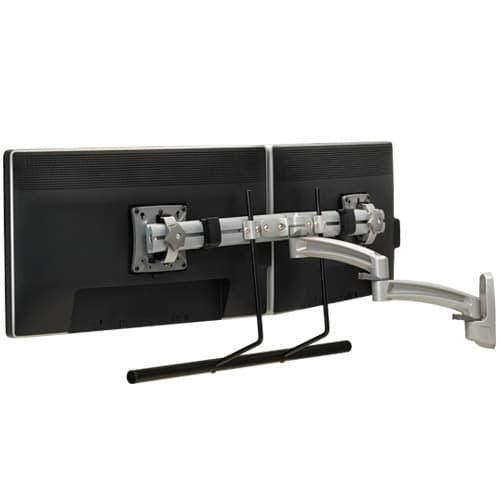

Kontour™ K2W Wall Mount Swing Arm, Dual Monitor Array-K2W22HS
Wall-mounted dual monitor array for 10" - 24" displays, featuring 15 lbs capacity per monitor and +/- 15° tilt adjustment
The Chief K2W22HS is a dual monitor array designed for wall-mounted configurations in professional environments. This 2x1 array configuration supports two displays in either landscape or portrait orientation. Each monitor is supported by a single arm link, providing a maximum extension of 17.35 in (44.1 cm) from the wall. When retracted, the arms reach a minimum depth of 2.95 in (7.5 cm), allowing for a compact profile in tight workspaces. Each individual monitor must not exceed a weight capacity of 15 lbs (6.8 kg). This system features patented Centris™ heads that allow for effortless tilt adjustment from +15° to -15°. The arms are constructed from forged aluminum with a silver finish and include tool-free cable management clips to maintain a professional appearance. This TAA-compliant mount is versatile for various applications and is compatible with OFB furniture brackets. For installations requiring specific display interfaces, several FSB series interface brackets are available as accessories. This SKU is the silver variant of the K2W series, which also includes a black finish option.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 17.35 in (44.1 cm) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 13
| Array Configuration | 2x1 |
| Color | Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | Yes |
| Mounting Method | Wall Mount |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872160757 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Verified fitment
Questions about this part
Will the K2W22HS fit my specific monitors?
This array is verified against 5,256 display models from 178 manufacturers. Examples of compatible displays include the Samsung 150MP, LG 15LA60, Philips 10BDL3051T, Sharp AS173MBK, Toshiba 14DL74, and ViewSonic EP1020R.
What do I need to buy to complete the installation?
The K2W22HS is a dual monitor array; ensure you have the required VESA interface brackets, such as the FSB4243B or FSB1U, depending on your specific display requirements.
Can I change the orientation of the monitors?
Yes, this mount supports both landscape and portrait orientations to accommodate your specific ergonomic or workspace needs.
How much can each monitor weigh?
Each monitor in the array has a weight capacity of 15 lbs (6.8 kg). This capacity is per monitor, not the total for the array.
What documentation is available for submittals?
Technical drawings are available in PDF format, and a DWG CAD drawing can be used for detailed architectural planning.
