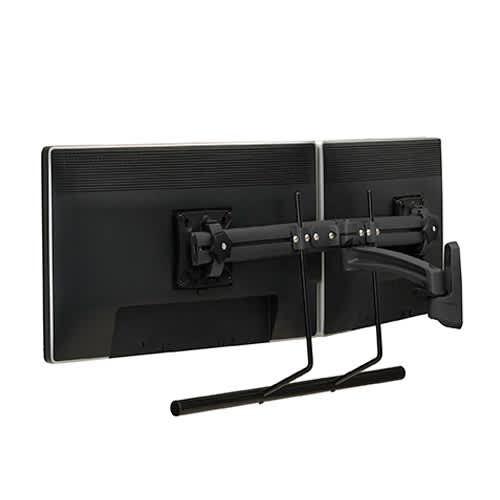

Kontour™ K2W Wall Mount Swing Arm, Dual Monitor Array-K2W21HB
Dual monitor wall mount swing arm for 10"–24" displays, 15 lbs capacity per monitor, with tilt, swivel, and extension
The Chief K2W21HB Kontour K2W Wall Mount Swing Arm is a dual monitor array solution designed for office, healthcare, and public environments. This 2x1 array configuration supports two displays with a typical screen size of 10"–24" diagonals. Each monitor is supported by an individual arm link, providing a maximum extension of 10.6 in (0.3 m) and a minimum depth of 2.95 in (7.5 cm) from the wall. The patented Centris™ Head allows for effortless +/- 15° tilt to ensure optimal viewing angles in either landscape or portrait orientation. This TAA compliant mounting solution is constructed from forged aluminum and features tool-free cable management clips to maintain a professional workspace. Note that this SKU is a dual arm array; the weight capacity is 15 lbs (6.8 kg) per monitor, and the mounting pole is not included.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 10.6 in (0.3 m) |
| Minimum Depth | 2.95 in (7.5 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 13
| Array Configuration | 2x1 |
| Color | Black |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | Yes |
| Mounting Method | Wall Mount |
| Number of Arm Links | 1 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872160702 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Questions about this part
Will the K2W21HB fit my 24-inch monitors?
Yes, this dual array is designed for displays with a typical screen size of 10"–24" diagonals, provided they do not exceed the 15 lbs (6.8 kg) weight capacity per monitor.
Does this mount include the mounting pole?
No, the K2W21HB is the swing arm array only. You will need to purchase the appropriate Chief KTA pole accessories to complete the installation.
Can I mount these monitors in portrait orientation?
Yes, the K2W21HB supports both landscape and portrait orientations to accommodate your specific workstation requirements.
What is the tilt range for the displays?
The Centris™ Head provides an effortless tilt range of +15° to -15° for each monitor in the array.
Is this product TAA compliant for government contracts?
Yes, the K2W21HB is TAA compliant, making it suitable for use in many federal and government installations.
