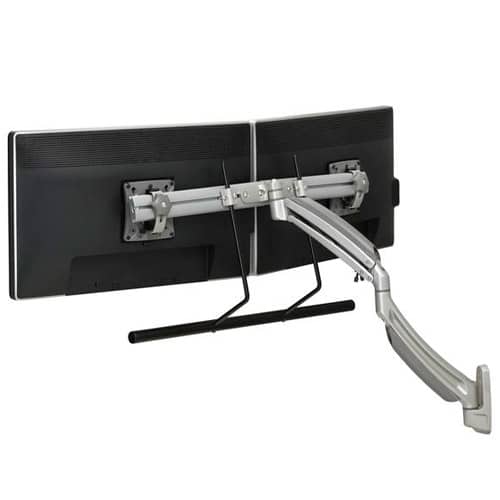

Kontour™ K1W Dynamic Wall Mount, Dual Monitor Array - K1W22HS
Dual monitor wall mount for 10"-24" displays, 2-9 lbs capacity, with gas-spring height adjustment and Centris™ Extreme Tilt
The Chief K1W22HS is a Kontour™ K1W Dynamic Height-Adjustable Wall Mount designed for dual monitor arrays in office, healthcare, and public environments. This silver-finished mount supports two displays with a typical screen size ranging from 10" to 24" (254 mm to 609.6 mm) per monitor. Using smooth motion gas-spring technology, the system provides 13" (330.2 mm) of dynamic height adjustment, allowing users to move their displays between sitting and standing positions effortlessly. Each arm offers tilt, swivel, extension, and height adjustability, with tilt ranges of +10° to -10° via patented Centris™ Extreme Tilt technology for fingertip positioning. This TAA-compliant mount accommodates a weight capacity of 2-9 lbs (0.9-4.1 kg) per display and features a minimum depth of 3.1" (7.9 cm). For a clean installation, the system includes tool-free cable management covers. This unit is compatible with OFB Furniture Brackets and can be mounted to most slatwall products using OFBLU or OFBU accessory interfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.81 in (52.9 cm) |
| Minimum Depth | 3.1 in (7.9 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 20.76 lbs (9.4 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
All other specifications 14
| Application | Desk-TabletopWall |
| Array Configuration | 2x1 |
| Color | Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height Assist |
| TAA Compliant | Yes |
| Tilt | +10° / -10° |
| UPC | 841872160467 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Verified fitment
Questions about this part
Will this K1W22HS mount fit my specific monitors?
It is verified against 2,334 display models from 102 manufacturers, including Samsung 150MP, Philips 150B4AG, LG 19CNT42KB, Sharp E242NBK, and ViewSonic N2751W.
What is required to mount this to a slatwall?
To mount this K1W series wall mount to most slatwall products, you will need to use an OFBLU or OFBU universal slatwall interface bracket.
What is the height and tilt range for the K1W22HS?
The system provides 13" (330.2 mm) of dynamic height adjustment and offers a tilt range of +10° to -10° per monitor.
Can I use this with furniture-integrated systems?
Yes, the K1W22HS is compatible with OFB Furniture Brackets and can be used in office or healthcare workstations.
What is the weight capacity for each display in the array?
This dual monitor array supports two displays, with each monitor requiring a weight of 2-9 lbs (0.9-4.1 kg) to operate the gas-spring mechanism correctly.
