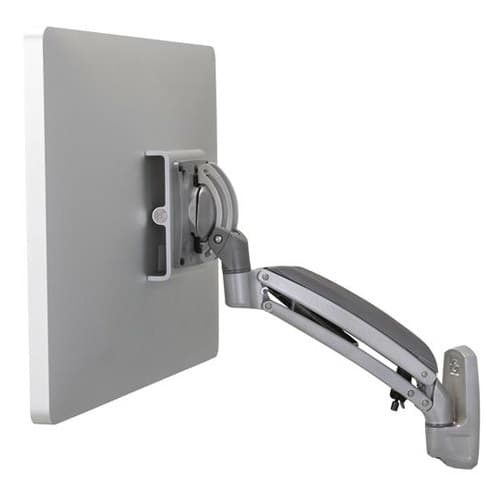

Kontour™ K1W Dynamic Wall Mount, 1 Monitor-K1W110S
Dynamic height-adjustable wall mount for 10"-30" monitors, 5-25 lbs capacity, with Centris™ Extreme Tilt and gas-spring technology
The Chief K1W110S is a dynamic, height-adjustable wall mount designed to provide ergonomic monitor positioning in office, healthcare, and public environments. This silver-finished single-monitor arm utilizes gas-spring technology to provide 13" (330.2 mm) of dynamic height adjustment and 13.42 in (0.3 m) of maximum extension. The integrated Centris™ Extreme Tilt technology allows for effortless fingertip positioning with a tilt range of +75° to -10°. Designed to support displays between 10" and 30" (254mm-762mm) with a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg), this mount offers versatile orientation in both landscape and portrait modes. It is TAA compliant and features tool-free cable management covers for a clean installation. This K1W-series mount can be installed to any standard wall or paired with OFBLU or OFBU accessory brackets to mount to most slatwall products.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 13.42 in (0.3 m) |
| Shipping Dimensions | 25.75" x 9.75" x 6.5"(654.1 x 247.7 x 165.1 mm) |
| Shipping Weight | 7.65 lbs (3.5 kg) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-TabletopWall |
All other specifications 12
| Color | Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Dual Array | No |
| Number of Arm Links | 1 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Reduced Height | No |
| Special Features | Height Assist |
| TAA Compliant | Yes |
| Tilt | +75°-10° |
| UPC | 841872160405 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60
Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
CPU Wall/Desk Mount - KSA1023B
KSA1023B$77.60
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
Verified fitment
Questions about this part
Will the K1W110S fit my specific monitor?
This mount is verified against 4,558 display models from 225 manufacturers. Examples include the Samsung 171B, Dell 1907FP, and HP 27q, covering a typical screen size range of 10" to 30".
How much weight can this single monitor arm hold?
The K1W110S supports a weight capacity of 5 - 25 lbs (2.3 - 11.3 kg), making it suitable for many modern all-in-one displays and monitors without the need for a heavy-duty arm.
Can I mount this to a slatwall?
Yes, the K1W-series can be mounted to most slatwall products by using the OFBLU or OFBU universal slatwall interface brackets.
What are the adjustment ranges for height and tilt?
The arm provides 13" (330.2 mm) of dynamic height adjustment and a tilt range of +75° to -10° using Centris™ Extreme Tilt technology.
Which installation documents are available for submittals?
For technical submittals, you can access the K1W110 Technical Drawing (PDF) or the K1W-K1S Series Installation Manual (PDF).
