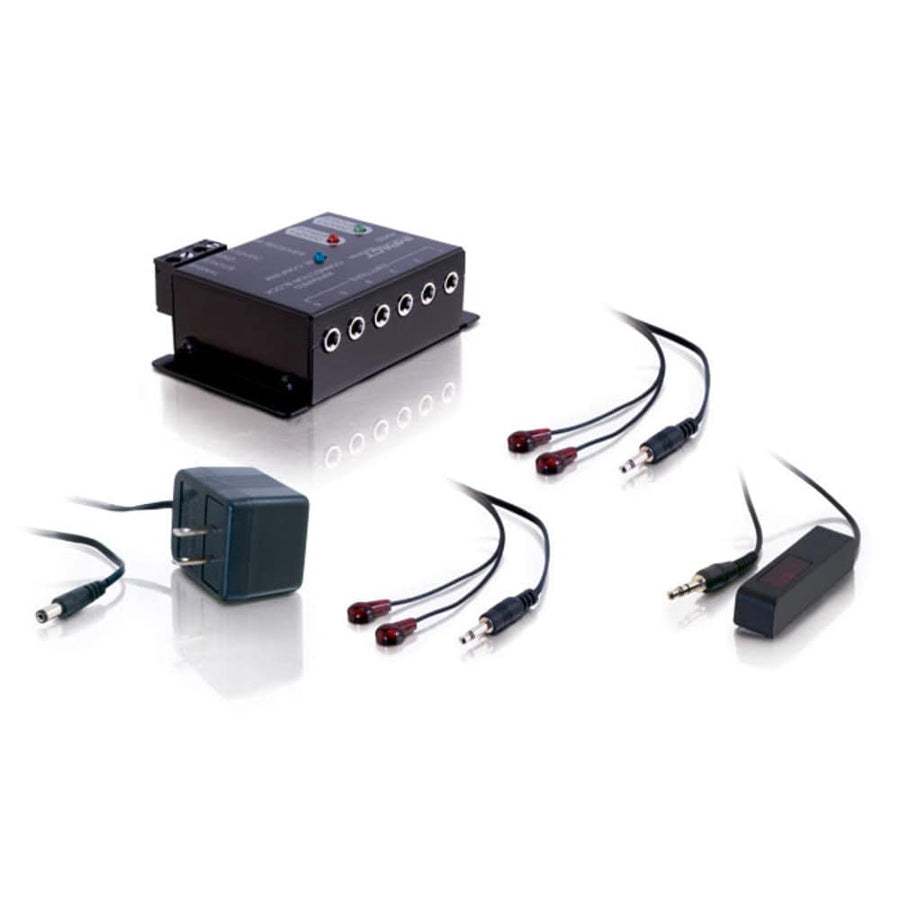

Infrared (IR) Remote Control Repeater Kit
Infrared repeater kit for controlling up to four devices behind closed doors or inside cabinets, includes emitters and an AC/DC adapter
The CG40430 is an infrared (IR) remote control repeater kit designed to provide line-of-sight for equipment mounted in closets, entertainment centers, or behind wooden doors. This kit enables an installer to relocate the IR receiver to a central, visible location while the electronic components remain hidden. The system utilizes an IR repeater block that is 2.5in (L) x 2.25in (W) x 1in (H) and requires 12 VDC power, which is provided via the included AC/DC adapter. The kit features a mini IR receiver with a 9ft (2.7 m) cable and four emitters to manage up to four devices, though the system is expandable to 12 components. To ensure reliable communication, both the receiver and the repeater include blinking blue LEDs that confirm when an IR signal has been successfully received.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 9 ft (2.7 m) |
| Shipping Weight | 1.22 lbs (0.6 kg) |
| Color | Black |
| Included | AC/DC AdapterIR EmittersMini IR Receiver |
| Product Type | AccessoryActive DeviceKit |
| TAA Compliant | Yes |
| UPC | 757120404309 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | 5 years |
Resources
Questions about this part
Will this kit work with devices in a closed cabinet?
Yes, the CG40430 allows you to mount the IR receiver in a visible location while the components remain inside a cabinet or closet.
How many devices can I control with this repeater kit?
The included kit provides 4 emitters to control four devices, but the system can be expanded to manage 12 components.
What is required to power the IR repeater block?
The IR repeater block requires 12 VDC, and the necessary AC/DC adapter is included in the kit.
Are replacement cables available for the IR receiver or emitters?
Yes, you can order a 10ft Infrared Receiver with 3.5mm Plug (#98045), a 10ft Single IR Emitter Cable (#40432), or a 10ft Dual IR Emitter Cable (#40433).
Which documents are available for installation and submittals?
You can access the C2G-40430 Manual (PDF) or the product-specific Infrared (IR) Remote Control Repeater Kit (PDF) for technical details.
