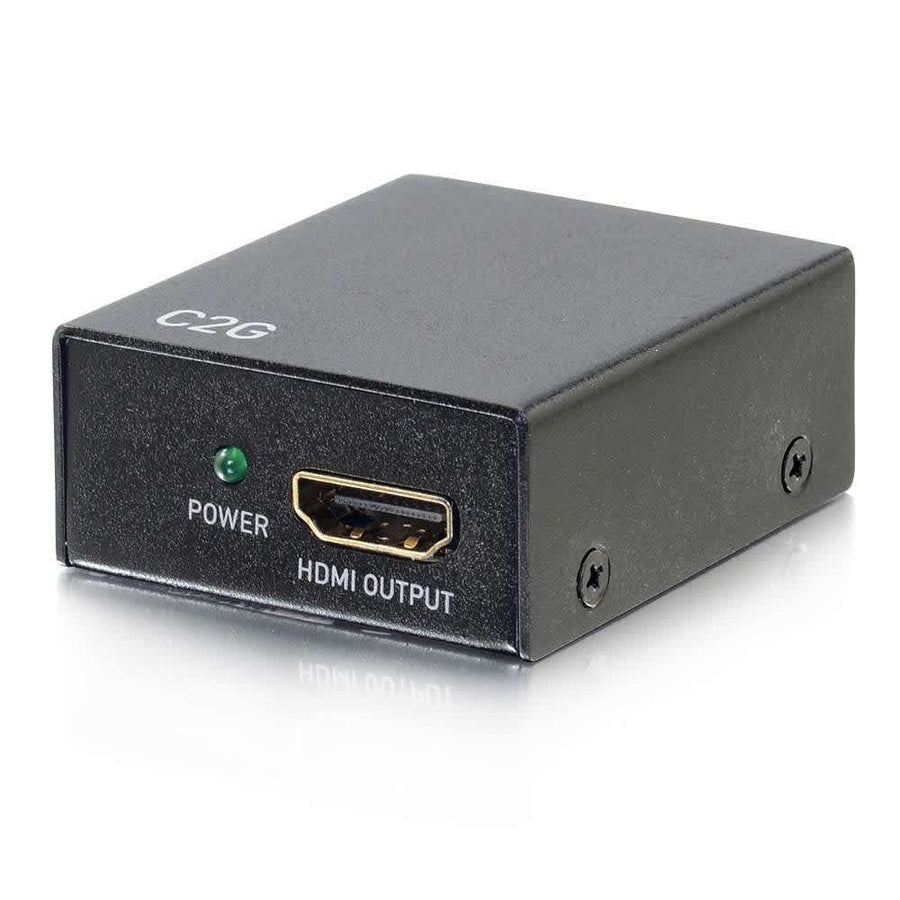

HDMI® Inline Extender - 4K 60Hz
HDMI extender supporting 4K @ 60Hz (4:4:4) up to 82ft and 1080p up to 164ft
The CG42394 is a C2G HDMI Inline Extender designed to extend A/V signals over existing HDMI cabling. This active device supports high-resolution video, including 4K @ 60Hz (4096 x 2160) with 4:4:4 chroma subsampling for a total bandwidth of 18 Gbps. When utilizing 4K resolution, the extender reaches distances up to 82ft, while standard 1080p signals can be extended up to 164ft. This unit is HDCP 2.2 compliant and supports HDR10, Dolby Vision HDR, 3D formats, and CEC pass-through. It also handles advanced audio formats such as Dolby TrueHD, DTS-HD Master Audio, Dolby Digital AC3, and LPCM 7.1. The female-to-female configuration allows for simple installation between a source and a display. While many HDMI sources provide enough power for operation, some devices may require an external DC to USB power cable or an HDMI Voltage Inserter (C2G 42223 or 42236) to function properly.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.14 in (3.6 mm) |
| Cable Length | 247 in (627.4 cm) |
| Max Distance Support | 164 ft (50 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 0% RH (Non-Condensing) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
All other specifications 20
| Storage Humidity Min | 0% RH (Non-Condensing) |
| Storage Temperature Max | 140 Fahrenheit (60 Celsius) |
| Storage Temperature Min | 14 Fahrenheit (-10 Celsius) |
| Audio Specifications | Dolby Digital AC3Dolby TrueHDDSDDTSDTS-HD Master AudioLPCM 7.1 |
| Cable Type | HDMI |
| Chroma Subsampling | 4:4:4 |
| Color | Black |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Female |
| Product Type | Active DeviceExtender |
| Signal Type | HDMI |
| TAA Compliant | No |
| Technology Specifications | HDCP 2.2HDMI 2.0 |
| UPC | 757120423942 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
Questions about this part
How far can I extend 4K resolution with the CG42394?
The CG42394 supports 4K @ 60Hz (4:4:4) up to distances of 82ft. For 1080p resolutions, the maximum extension distance is 164ft.
What if my HDMI source device does not provide enough power?
If a source device cannot output sufficient power for the extender, you can use the included DC to USB power cable or an HDMI Voltage Inserter like the C2G 42223 or 42236.
Does this extender support HDR and high-end audio formats?
Yes, the CG42394 supports HDR10 and Dolby Vision HDR, as well as audio formats including Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1.
What is the maximum bandwidth supported by the CG42394?
This active extender supports a total data transfer rate of up to 18 Gbps, enabling high-bandwidth HDMI 2.0 performance.
What do I need to complete the installation of this extender?
You will need two HDMI cables: one from your source to the 'Source' port and one from the 'Display' port to your monitor or projector. Note that this is an active device that uses the HDMI cable for power.
