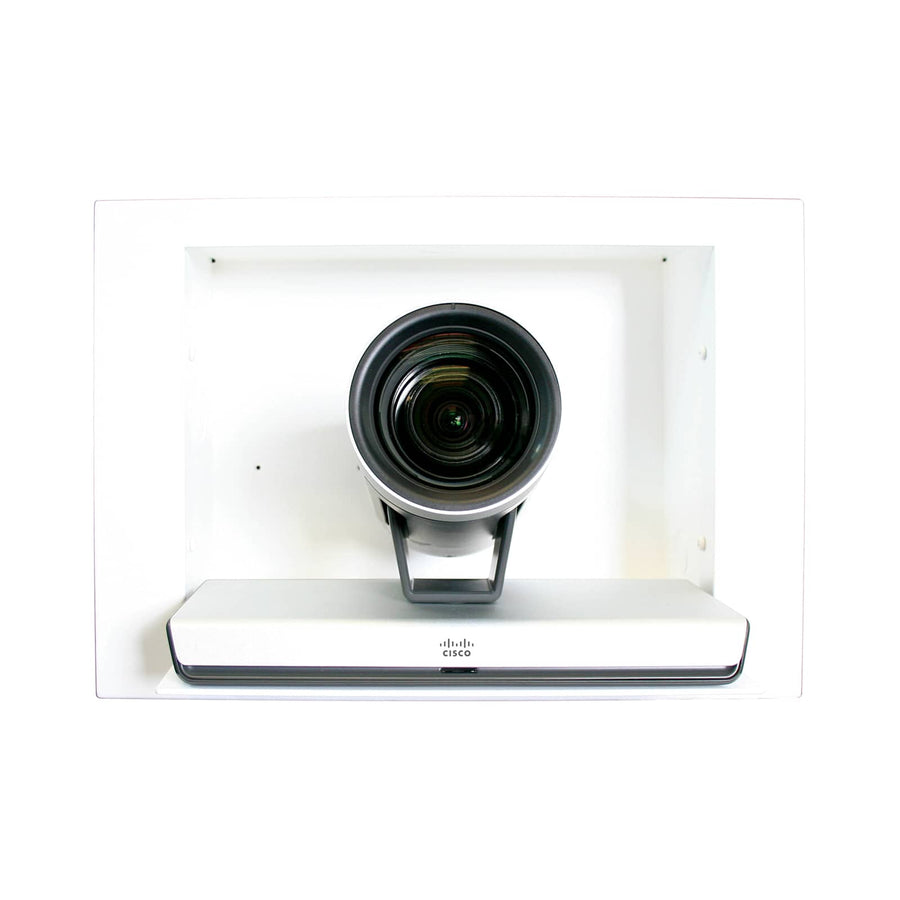

IN-Wall Enclosure for Cisco Precision 60
Recessed in-wall camera mount for Cisco Precision 60 and ClearOne Unite 100/200, featuring 4.0" platform extension
The 999-2225-020 is a recessed in-wall enclosure designed to integrate PTZ cameras into a room's architecture, utilizing wall cavity depth to minimize the camera's extension into the field of view. This mounting solution is ideal for creating a sleek, professional appearance in conference rooms. The enclosure features a heavy-duty camera platform made of cold-rolled steel for maximum rigidity and durability, extending 4.0" from the wall once installed. To accommodate construction timelines, the modular design supports a phased installation; the in-wall mounting box can be installed during the initial room build-out, while the camera platform and face frame are added later. This white enclosure can be painted to match the surrounding décor. It is designed to house a camera along with the EZCamera Interface Module (EZIM™) when used with a OneLINK-compatible camera extension system. This SKU is TAA compliant and includes the wall box, camera platform, and mounting hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8.16 in (20.7 cm) |
| Height | 10.27 in (26.1 cm) |
| Product Weight | 10 lbs (4.5 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Width | 14.74 in (37.4 cm) |
| Application | Wall |
| Color | White |
All other specifications 7
| Compatible With | Cisco |
| OneLINK Compatibility | No |
| Quick-Connect Compatibility | No |
| TAA Compliant | Yes |
| UPC | 840077500986 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Verified fitment
Questions about this part
Will this enclosure fit my Cisco Precision 60 or ClearOne Unite camera?
Yes, this enclosure is specifically designed for the Cisco Precision 60, as well as ClearOne Unite 100 and Unite 200 models.
Can I install the mounting box before the room is finished?
Yes, the modular design supports a phased installation where the in-wall mounting box is installed during the initial build-out, and the platform and face frame are added later.
How much will the camera stick out from the wall?
Once installed, the heavy-duty steel camera platform extends 4.0" from the wall surface.
Is this mounting solution compatible with OneLINK systems?
Yes, it is designed to house a camera and the EZCamera Interface Module (EZIM™) for OneLINK-compatible camera extension systems.
What documentation is available for submittals and installation?
Technical specifications, installation and connection manuals, and CAD drawings (dwg format) are available in the Resources tab.
