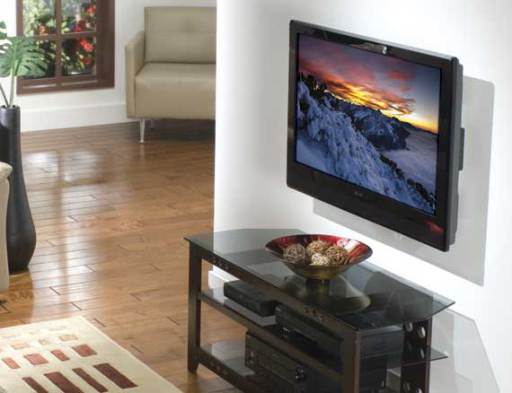

Fixed-Position Wall Mount for 37" - 90" flat-panel TVs - LL22-B1
Fixed-position wall mount for 37" - 90" displays, 175 lbs capacity, featuring lateral shift and ProSet leveling adjustments
The Sanus LL22-B1 is a fixed-position wall mount engineered for 37" - 90" flat-panel TVs with a weight capacity of 175 lbs (79.4 kg). This UL Listed mount utilizes ProSet technology to allow for post-installation height and leveling adjustments, ensuring the display is positioned accurately after it has been hung. For ease of service, the ClickStand feature holds the TV away from the wall to facilitate cable management and maintenance before snapping the display flush to the wall plate. The design incorporates an open wall plate for cable routing and includes ClickFit technology, which allows a surge protector to be attached to the center of the mount to keep it hidden yet accessible. This mount features lateral shift capabilities, allowing the installer to slide the TV left or right on the wall plate to accommodate off-center studs. The construction is powder-coated steel with universal mounting brackets to support a wide range of VESA patterns.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 8.64 in (22 cm) |
| Height | 18.25 in (46.4 cm) |
| Product Weight | 12.5 lbs (5.7 kg) |
| Typical Screen Size | 37" - 90" (93cm - 228cm) |
| Weight Capacity | 175 lbs (79.4 kg) |
| Width | 30 in (76.2 cm) |
| Adjustability | FixedLateral Shift |
| Application | Wall |
All other specifications 6
| Color | Black |
| Installation Items | 1/2" Masonry Bit - Concrete Installations1/2" Socket Wrench3/16" Drill BitAwlElectric DrillLevelPencilPhillips Head ScrewdriverStud Finder |
| Universal Mounting | Yes |
| UPC | 793795363688 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm500 x 100mm500 x 200mm500 x 300mm500 x 400mm600 x 100mm600 x 200 mm600 x 300mm600 x 400mm700 x 200mm700 x 300mm700 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the Sanus LL22-B1 fit my specific TV?
The LL22-B1 is compatible with 37" - 90" displays and supports a wide range of VESA patterns, including 400x400mm, 600x400mm, and 700x400mm, verified across various manufacturer models.
How do I adjust the TV once it is mounted?
The mount offers lateral shift to move the TV side-to-side and ProSet technology for post-installation height and leveling adjustments to ensure the display is perfectly positioned.
What tools are required for installation?
To complete this installation, you will need an electric drill, a 3/16" drill bit, a 1/2" masonry bit for concrete, a 1/2" socket wrench, a Phillips head screwdriver, a level, a stud finder, an awl, and a pencil.
Can I mount a soundbar to the LL22-B1?
Yes, this mount is compatible with the VMA201 soundbar speaker mount for integrated audio solutions.
How close to the wall will the display sit?
The low-profile design positions the TV with a 8.64 in (22 cm) distance from the wall when fully secured.
