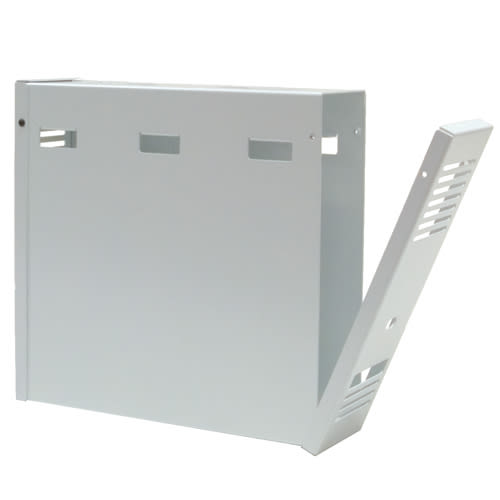

In-Ceiling Storage Enclosure-CMA170W
In-ceiling component storage for small form factor CPUs that clamps directly to 1.5" NPT columns
The Chief CMA170W is a specialized in-ceiling storage solution designed to house small form factor CPUs or other lightweight equipment within a projector ceiling installation. This component storage enclosure is TAA compliant and features a black and white color scheme. For ease of installation in both new and retrofit environments, the unit includes multiple integrated cable pathways to manage connections efficiently. Maintenance is streamlined through the use of two removable, hinging covers that provide direct access to the stored equipment. This enclosure is designed to clamp directly onto 1.5" NPT columns, making it a versatile addition to existing ceiling-mounted systems. The CMA170W can accommodate equipment up to a 25 lbs (11.3 kg) weight capacity, with total enclosure dimensions of 14.3" x 4.3" x 15.2" (362 x 110 x 386 mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.2 in (38.6 cm) |
| Height | 14.3 in (36.3 cm) |
| Overall Dimensions | 14.3" x 4.3" x 15.2" (362 x 110 x 386 mm) |
| Shipping Weight | 21 lbs (9.5 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 4.3 in (10.9 cm) |
| Accessory Type | Component Storage |
| Application | Ceiling |
| Color | Black and White |
| TAA Compliant | Yes |
| UPC | 841872103501 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the CMA170W fit my ceiling column?
The enclosure is designed to clamp directly to 1.5" NPT columns.
How much weight can this storage enclosure hold?
The CMA170W has a weight capacity of 25 lbs (11.3 kg).
How do I access equipment once the enclosure is installed?
The unit features two removable, hinging covers to allow for easy equipment access.
What is the difference between the CMA170W and the standard CMA170?
The CMA170W is a variant of the CMA170 series specifically featuring a black and white color scheme.
Which documents are available for submittals or installation?
You can access the CMA170W Technical Drawing, CAD Drawing, and Installation Manual via the resources section.
