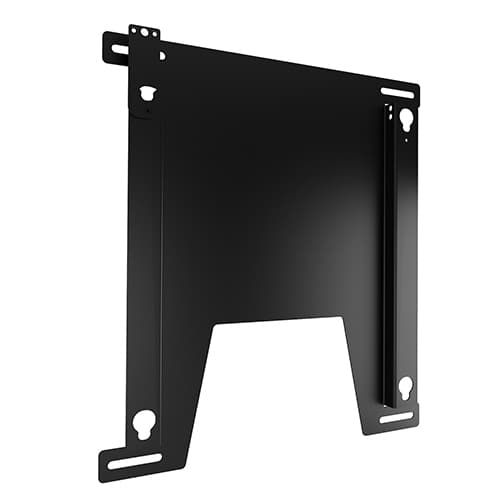

Heavy-Duty Custom Flat Panel Wall Mount - Various 65-103 Inch TVs-PSMH2841
Heavy-duty custom wall mount for 65-103 inch displays, 275 lbs capacity, TAA compliant, landscape orientation
The Chief PSMH2841 is a heavy-duty custom wall mount designed to provide a cost-effective solution for mounting large flat panel TVs, including plasma and LCD screens. This specialized bracket is engineered for displays ranging from 65 to 103 inches, providing a secure foundation for large-format commercial or residential installations. Featuring a low-profile design with a 1.3 in (3.3 cm) depth, this mount helps installers meet specific manufacturer requirements regarding airspace around the display. The integrated Q-Latch Mounting System ensures the TV is securely fastened to the wall while allowing for quick installation and efficient release during servicing. This landscape-oriented mount is TAA compliant and is compatible with 16" (406mm) wall stud spacing. For installers requiring additional functionality, the FRA Freestyle Flat Panel Rotation Adapter is available to enable rotation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.3 in (3.3 cm) |
| Height | 21 in (53.3 cm) |
| Overall Dimensions | 21.0" x 19.5" x 1.3" (533 x 495 x 32mm) |
| Shipping Weight | 8.97 lbs (4.1 kg) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 275 lbs (124.7 kg) |
| Width | 19.5 in (49.5 cm) |
| Adjustability | Fixed |
All other specifications 7
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872147727 |
| Certifications | TAA |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the PSMH2841 fit my specific display model?
This mount is verified against 4,507 display models from 92 manufacturers, including Samsung 46HA570, LG 42GA6400, Sony 85BZ30P, and Panasonic TC50CX600.
Can I use this mount for portrait orientation?
No, the PSMH2841 is designed for landscape view orientation only.
What is the weight limit for this heavy-duty mount?
The PSMH2841 has a maximum weight capacity of 275 lbs (124.7 kg).
What do I need to do to rotate the display?
To achieve rotation, you must purchase the FRA Freestyle Flat Panel Rotation Adapter separately.
What is required for the wall installation?
The mount is designed for wall applications and is compatible with 16 in (406 mm) wall stud spacing.
