Heavy-Duty Custom Flat Panel Wall Mount - NEC 82 Inch
Custom heavy-duty wall mount for 82 inch displays, 320 lbs capacity, with a 4 in (10.2 cm) depth and fixed orientation

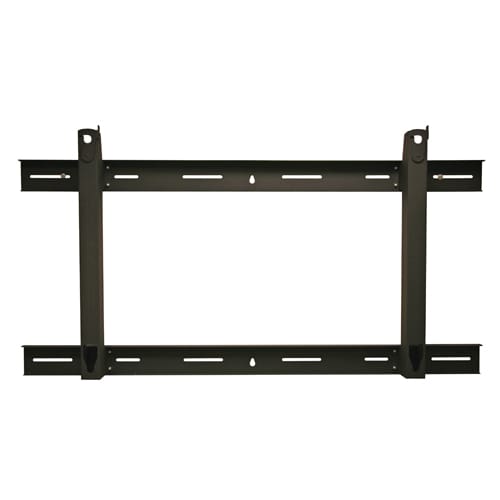

The Chief PSMH2682 is a custom heavy-duty wall mount solution designed specifically for large-format 82 inch displays. This landscape-oriented mount provides a fixed installation for large flat panel TVs, plasma, and LCD screens. It is engineered to support a substantial weight capacity of 320 lbs (145.1 kg), making it a robust option for high-demand environments. The mount features a 4 in (10.2 cm) depth and has overall dimensions of 35.3" x 62.0" x 4.0" (896 x 1575 x 102 mm). This unit is TAA compliant and is built for wall applications where a secure, custom-fit mounting solution is required. For integrators looking for additional functionality, this mount is compatible with the CSMP9X12 Proximity™ Component Storage Panel, Interface and the FRA Freestyle Flat Panel Rotation Adapter. For submittals, the PSMH2682 Installation Manual (PDF) is available to assist with the setup process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4 in (10.2 cm) |
| Height | 35.3 in (89.7 cm) |
| Overall Dimensions | 35.3" x 62.0" x 4.0" (896 x 1575 x 102mm) |
| Shipping Weight | 88.25 lbs (40 kg) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 320 lbs (145.1 kg) |
| Width | 62 in (157.5 cm) |
| Adjustability | Fixed |
All other specifications 7
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872119557 |
| Certifications | TAA |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the PSMH2682 fit my NEC or Cybertouch display?
This mount is verified against several models, including NEC LCD8205 and RMT8232, as well as Cybertouch RMT8202, RMT8206, and RMT8232.
What are the mounting requirements for the wall?
The mount is designed for wall applications and is compatible with 16" (406mm) wall stud spacing.
Can I add component storage to this mount?
Yes, this mount is compatible with the CSMP9X12 Proximity™ Component Storage Panel, Interface for additional hardware mounting.
Does this mount allow for rotation?
This is a fixed orientation mount, but it is compatible with the FRA Freestyle Flat Panel Rotation Adapter for rotation functionality.
What is the total weight capacity for this mount?
The PSMH2682 has a maximum weight capacity of 320 lbs (145.1 kg).
