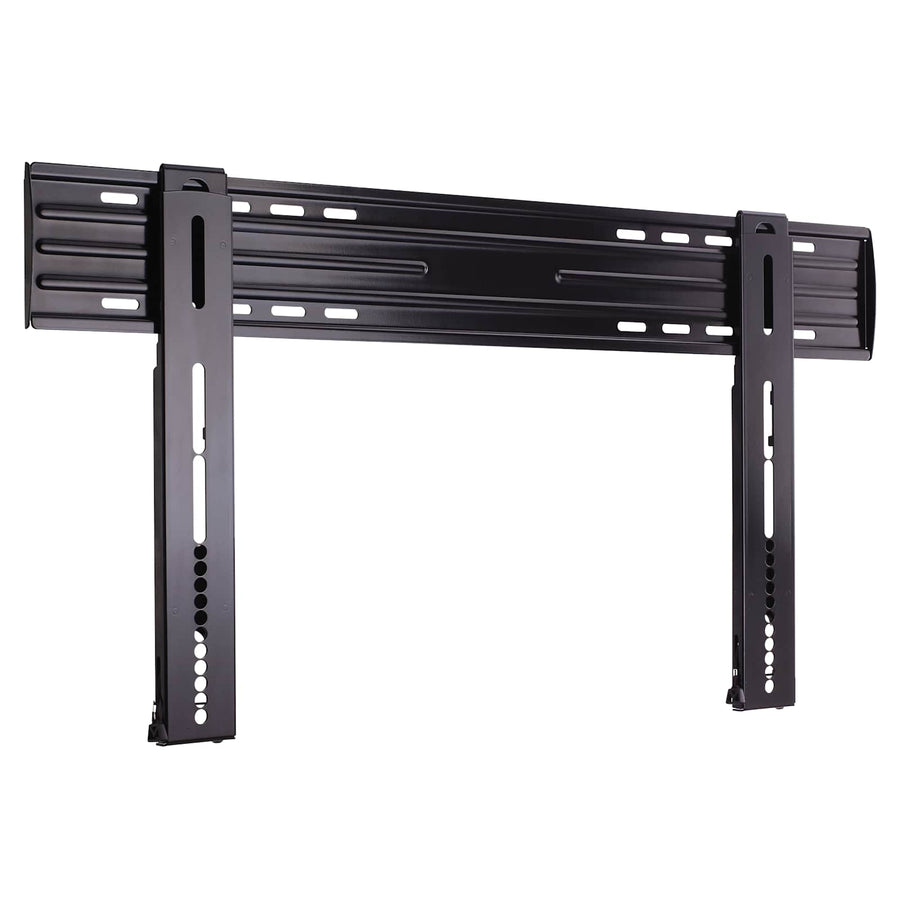

HDPro® Super Slim Fixed-Position Wall Mount for 51" - 80" flat-panel TVs - LL11-B1
Super slim fixed-position wall mount for 51" - 80" displays, 150 lbs capacity, featuring lateral shift and ProSet® micro-adjustments
The Sanus LL11-B1 is a professional-grade, ultra-low profile mount designed to maximize the aesthetic of thin LED, LCD, and plasma displays. By placing the television just 3.1 in (7.9 cm) from the wall, this mount provides a sleek, flush-to-wall appearance ideal for eye-level viewing. To assist the custom installer, Sanus incorporates ClickStand® technology, which holds the bottom of the TV away from the wall to facilitate easy cable access without requiring the removal of the unit from the wall plate. Integrated quick-release tabs on the mounting brackets allow for easy unlocking of the TV for further service. Once hung, the ProSet® feature enables precise post-installation height and leveling micro-adjustments to ensure a perfectly straight installation. Additionally, the lateral shift capability allows the installer to move the TV left or right to compensate for off-center studs. This UL Listed mount is engineered to support displays between 51" and 80" with a total weight capacity of 150 lbs (68 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 3.1 in (7.9 cm) |
| Height | 18.16 in (46.1 cm) |
| Package Depth | 6.9 in (17.5 cm) |
| Package Height | 1.8 in (4.6 cm) |
| Package Width | 37.5 in (95.3 cm) |
| Product Weight | 9 lbs (4.1 kg) |
| Shipping Dimensions | 38.35" x 7.11" x 1.92" (974.1 x 180.6 x 48.8 mm) |
| Shipping Weight | 10.36 lbs (4.7 kg) |
All other specifications 11
| Typical Screen Size | 40" - 85" (102cm -216cm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 35.3 in (89.7 cm) |
| Adjustability | FixedLateral Shift |
| Application | Wall |
| Color | Black |
| Installation Items | 3/16" Drill Bit3/8" Masonry Bit - Concrete Installations5/16" Masonry Bit - Concrete InstallationsAwlElectric DrillHammerLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Universal Mounting | Yes |
| UPC | 793795520357 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm400 x 500mm500 x 100mm500 x 200mm500 x 300mm500 x 400mm500 x 500mm600 x 100mm600 x 200 mm600 x 300mm600 x 400mm600 x 500mm700 x 200mm700 x 300mm700 x 400mm700 x 500mm800 x 200mm800 x 400mm800 x 500mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the Sanus LL11-B1 fit my specific TV model?
This mount is verified for a typical screen size of 40" - 85" (102cm -216cm). It features expandable brackets to support a wide range of VESA patterns, including 400 x 400mm, 600 x 400mm, and 800 x 400mm.
What tools are required for installing the LL11-B1?
An installer will need an electric drill, level, tape measure, stud finder, pencil, Phillips head screwdriver, hammer, and awl. Depending on the wall type, a 3/16" or 3/8" or 5/16" masonry bit may be required for concrete installations.
How do I access cables behind the TV without unmounting it?
The integrated ClickStand® technology holds the bottom of the display away from the wall to provide an opening for cable access. For full removal, use the hidden quick-release tabs on the mounting brackets to unlock the TV from the wall plate.
Can I adjust the TV once it is mounted to the wall?
Yes. The ProSet® feature allows for micro-adjustments to height and leveling after the TV is hung. You can also use the lateral shift feature to move the TV left or right for perfect centering.
What is the maximum weight and stud spacing for this mount?
The LL11-B1 has a weight capacity of 150 lbs (68 kg). The wall plate mounting holes are designed to accommodate either 16" or 24" stud spacing.
