Hard Ceiling Camera Mount
Hard ceiling mount for inverted PTZ and fixed cameras, featuring cold-rolled steel construction

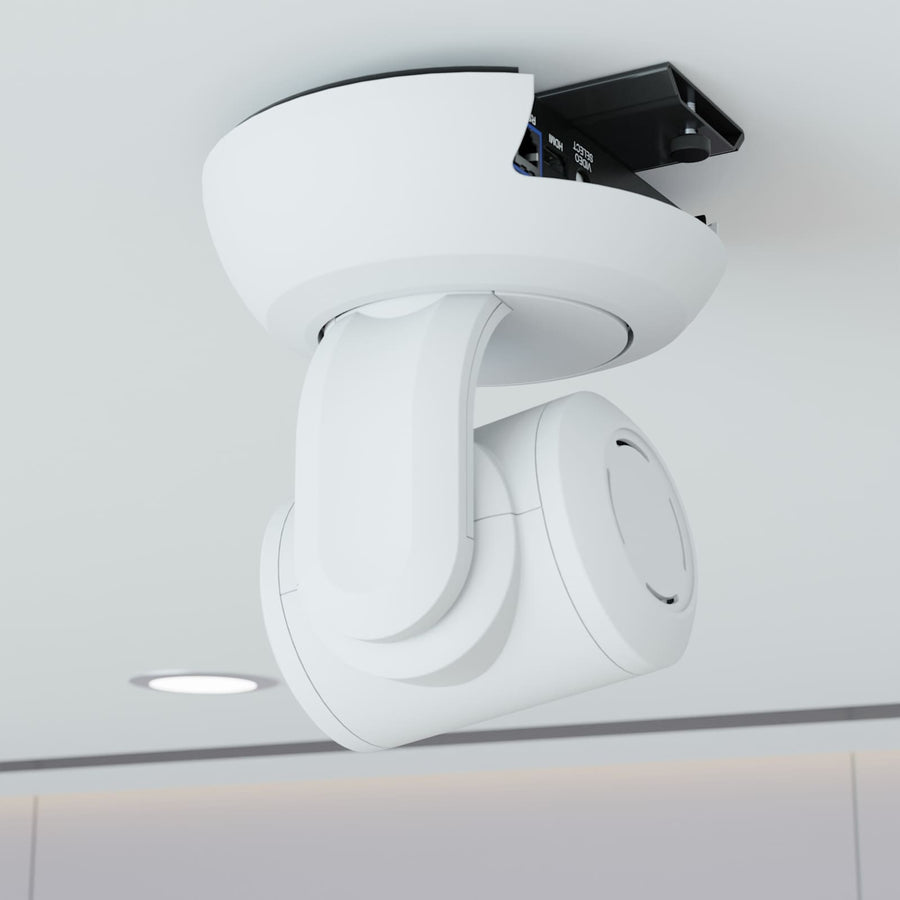

The Vaddio 535-2000-266 Hard Ceiling Camera Mount is designed for installing inverted cameras in permanent ceiling applications. This mount facilitates a two-step installation process: the camera bracket is first attached to the camera, followed by the ceiling bracket being secured to the hard ceiling. Once the camera is positioned, it slides onto the ceiling bracket and is held securely in place by tightening a hand screw. The construction is made of cold-rolled steel for durability. To assist with clean cable management, this mount includes a 1 in (2.5 cm) cable grommet for routing wires through the ceiling. This TAA compliant solution is a versatile mounting option for professional AV installations requiring fixed, overhead camera positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.7 lbs (0.3 kg) |
| Application | Ceiling |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 840077508302 |
| Certifications | CEFCCTAA |
Resources
Verified fitment
Questions about this part
Will this mount work with my Vaddio camera?
Yes, this mount is verified for several Vaddio models, including the RoboSHOT 20 UHD, RoboSHOT 40 UHD, ConferenceSHOT 10, and ConferenceSHOT AV.
What do I need to do to secure the camera once it is on the mount?
The camera slides into the ceiling bracket and is secured using a built-in hand screw for quick adjustments and installation.
Is there a way to manage cables during installation?
The mount includes a 1 in (2.5 cm) cable grommet to help route your cabling cleanly into the ceiling.
What type of installation is required for this mount?
This is a hard ceiling mount designed for direct attachment to a ceiling surface, rather than a pendant or unistrut system.
Does this mount support cameras from other manufacturers?
Yes, it is verified compatible with various models from Sony, Aver, Lumens, Telycam, and Marshall.
