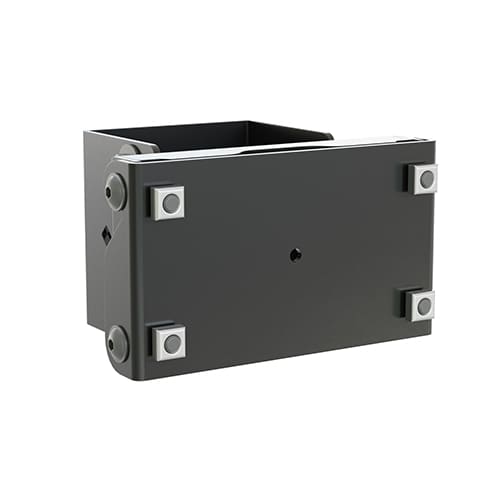

Fusion® Row to Column Connector
Modular connector for freestanding video walls, supporting displays 42" - 65" with a 175 lbs capacity
The Chief FMSFR is a Fusion® Row to Column Connector designed to facilitate the construction of bolt-down freestanding video walls in prominent, permanent locations. This modular component is part of a system that can be configured to include as many displays as the installation requires. It is engineered for large venue applications where clean, professional transitions are necessary. The connector features integrated cable management to ensure a tidy installation. To ensure precise alignment during the build, the FMSFR provides micro-adjustment capabilities, including up to 0.75" (19 mm) for both manual height adjustment per screen and plumb adjustment. This connector is intended for use with displays ranging from 42" to 65" (1067mm - 1651mm) and supports a weight capacity of 175 lbs (79.4 kg). It is TAA compliant and UL listed for professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.2 in (13.2 cm) |
| Height | 4 in (10.2 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 4.0" x 7.1" x 5.2" (101.6 x 180.34 x 132.08 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 4.87 lbs (2.2 kg) |
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
All other specifications 11
| Weight Capacity | 175 lbs (79.4 kg) |
| Width | 7.1 in (18 cm) |
| Accessory Type | ExtensionInstallation |
| Adjustability | Fixed |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Large VenueModularMulti-DisplayTransitions |
| TAA Compliant | Yes |
| UPC | 841872175829 |
| Certifications | TAAUL Listed |
