Fusion® Portrait Micro-Adjustable Large Ceiling Mounted 3 x 2 Video Wall Solutions
Ceiling-mounted 3x2 portrait video wall solution for 40"-50" displays with micro-adjustability for precise alignment

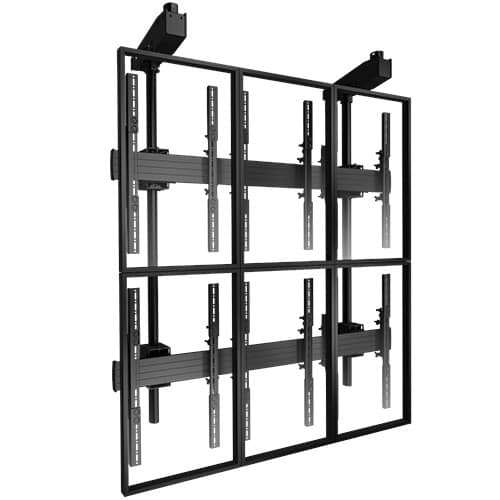

The Chief LCM3X2UP is a ceiling-mounted solution designed for constructing large-scale video walls in prominent locations where wall mounting is not an option. This specific configuration is engineered for a 3x2 array in a portrait orientation, accommodating a total of 6 displays. It is optimized for displays with a typical screen size between 40" and 50" (1016mm - 1270mm) and supports a weight capacity of 125 lbs (56.7 kg) per display. Achieving tight rows and columns is made simpler through the integrated CONTROLZONE™ leveling system. This provides micro-adjustment of up to 0.75" (19 mm) for plumb and manual height adjustment in 1" (25 mm) increments at the structural intersection points. For even finer positioning, the system allows for micro-adjustments of 2" at the structural intersection points to ensure infinite screen positioning. This robust assembly is TAA compliant and UL listed, making it suitable for high-profile digital signage and corporate environments. To expand this setup, additional configurations can be added side-by-side to create arrangements up to 3 screens tall.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 1" (25 mm) increments at structural intersections |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Dimensions | 112" x 23.5" x 13.5" (284.5 x 59.7 x 34.3 cm) |
| Shipping Weight | 190 lbs (86.2 kg) |
| Typical Screen Size | 40" - 50" (1016mm - 1270mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Height AdjustableMicro-Adjustable |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
All other specifications 11
| Application | Ceiling |
| Array Configuration | 3x2 |
| Color | Black |
| Number of Displays | 6 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872159119 |
| VESA Mounting Pattern | 100 – 800mm x Any Height |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Unistrut Adapter
CMA370$23.20
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
Verified fitment
Questions about this part
Will this mount fit my specific displays?
The LCM3X2UP is verified against 7,637 display models from 194 manufacturers, including Samsung 400CX, Sony 50BZ30P, and LG 32LC5DCS. It supports VESA mounting patterns from 100–800mm x Any Height.
What mounting hardware do I need for the ceiling?
Depending on your installation environment, you may need additional items like the CMA110 8 inch (203 mm) Ceiling Plate, CMA165 Internal Joist Ceiling Kit, or the CMA370 Unistrut Adapter.
How do I adjust the screen alignment after installation?
The system features integrated micro-adjustment knobs for height and plumb, allowing you to achieve precise alignment at all column intersection points without the use of tools.
Can this be used for landscape video walls?
This specific SKU (LCM3X2UP) is configured for a portrait orientation. You would need a different configuration from the Fusion series for a landscape arrangement.
Which technical documents are available for submittals?
Installers can access the LCM3X2UP Technical Drawing (PDF), the CAD Drawing (dwg), or the Fusion Ceiling Video Wall Revit File (rfa) for planning and submittals.
