Fusion® Portrait Micro-Adjustable Large Ceiling Mounted 2 x 2 Video Wall Solutions
Ceiling-mounted 2x2 portrait video wall solution for 40"–50" displays with 125 lbs capacity per unit

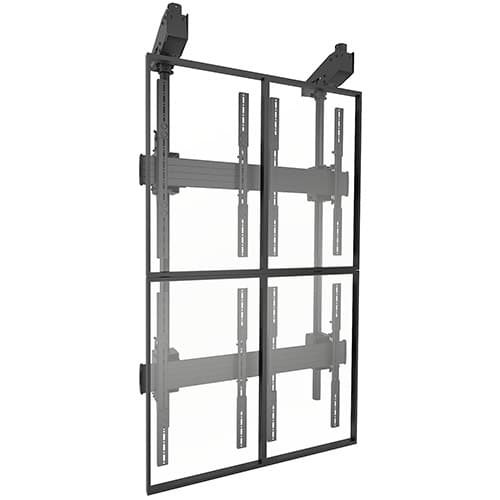

The Chief LCM2X2UP is a Fusion® ceiling-mounted video wall solution specifically configured for 2x2 portrait arrays. Designed for digital signage in prominent locations where wall mounting is not feasible, this system supports four displays with a typical screen size range of 40" to 50". Each display unit has a weight capacity of 125 lbs (56.7 kg). This series features heavy-duty construction and provides precise alignment through CONTROLZONE™ leveling. Installers can achieve tight rows and columns using infinite vertical and lateral adjustments. The system includes micro-adjustability at structural intersection points, allowing for 1" (25 mm) increments for manual height adjustments and micro-adjustment of up to 0.75" (19 mm) for plumb. This TAA-compliant and UL Listed solution allows for scalable configurations, as these units can be added side-by-side to reach up to 3 screens tall.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 1" (25 mm) increments at structural intersections |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Dimensions | 76" x 18.5" x 16" (193 x 47 x 40.6 cm) |
| Shipping Weight | 154 lbs (69.9 kg) |
| Typical Screen Size | 40" - 50" (1016mm - 1270mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Height AdjustableMicro-Adjustable |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
All other specifications 10
| Application | Ceiling |
| Array Configuration | 2x2 |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872159102 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Unistrut Adapter
CMA370$23.20
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
Verified fitment
Questions about this part
Will the LCM2X2UP fit my specific displays?
This mount is verified against 7,330 display models from 184 manufacturers. Examples of compatible displays include the Sony 50BZ30P, Samsung 460CX2, LG 32LC5D, Panasonic LH55RM1DX, Philips 23MW9030, and Sharp 50BJ3E.
What mounting hardware do I need for the ceiling attachment?
The LCM2X2UP requires a ceiling plate for installation. Compatible options include the 4" CMA105, 6" CMA115, or 8" CMA110 plates, as well as specialized items like the CMA165 Internal Joist Ceiling Kit or CMA370 Unistrut Adapter.
Can I adjust the display alignment after installation?
Yes, the system allows for infinite vertical and lateral positioning. It includes micro-adjustments of 2" at structural intersection points and manual height increments of 1" (25 mm) to ensure tight display rows and columns.
What is the maximum weight my video wall can support?
Each individual display in the 2x2 array is supported up to a capacity of 125 lbs (56.7 kg) per unit.
Which installation manual should I use for the LCM2X2UP?
You can refer to the LCM2X2UP/LCM3X2UP Installation Manual (PDF) for specific assembly and mounting instructions.
