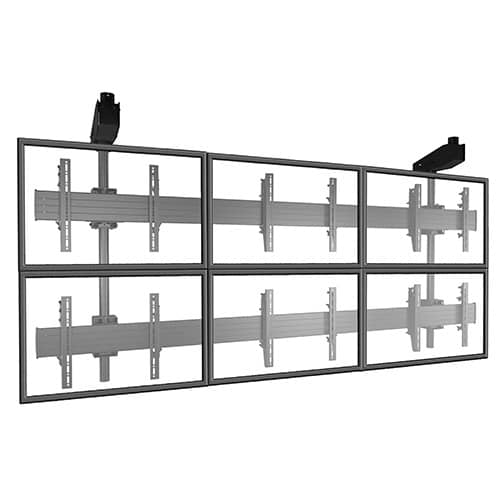

Fusion® Micro-Adjustable Large Ceiling Mounted 3 x 2 Video Wall Solutions
Ceiling-mounted 3x2 video wall solution for 42-50" displays, 125 lbs per screen capacity, with micro-adjustability
The Chief LCM3X2U is a Fusion® ceiling-mounted video wall solution designed for prominent digital signage installations where wall space is unavailable. This specific SKU is configured for a 3x2 array, supporting a total of 6 displays in a landscape orientation. It is engineered for large-format screens typically ranging from 42" to 50" (1067 mm to 1270 mm) and features a heavy-duty construction that supports up to 125 lbs (56.7 kg) per screen. To complete the installation, a ceiling plate and extension columns (either Adjustable or Fixed) must be ordered separately. This system is compatible with both traditional 1.5" NPT systems and the new CPA pinned ceiling plate and column systems. For professional finishes, the LCM3X2U can be paired with Chief Fusion® Universal Back Covers to provide an aesthetic covering for displays and rear-mounted components.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 1" (25 mm) increments at structural intersections |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Dimensions | 112" x 23.5" x 13.5" (284.5 x 59.7 x 34.3 cm) |
| Shipping Weight | 148 lbs (67.1 kg) |
| Typical Screen Size | 42"-50" (1067mm - 1270mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Height AdjustableMicro-Adjustable |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
All other specifications 10
| Application | Ceiling |
| Array Configuration | 3x2 |
| Color | Black |
| Number of Displays | 6 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872157146 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® Flat Panel Back Cover, Triple – Medium
FCAC3X1MB$980.00
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Fusion® Flat Panel Back Cover, Triple – Large
FCAC3X1LB$980.00
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Verified fitment
Questions about this part
Will the LCM3X2U fit my specific displays?
This mount is verified against 9,946 display models from 271 manufacturers, including Samsung 400CX, Sony 55BZ40P, LG 32LD690, Panasonic LH55RM1DX, Philips 32HF7543, and Sharp 40B553J2U.
What else do I need to order to complete the installation?
You must purchase a ceiling plate and extension columns separately. Compatible options include Adjustable or Fixed Extension Columns and various ceiling plates.
How do I adjust the screen alignment after mounting?
The system features micro-adjustment for height in 1" (25 mm) increments and plumb adjustment of up to 0.75" (19 mm) using independent knobs that require no tools.
What is the difference between this and the LCM2X2 or LCM3X3?
The LCM3X2U is configured specifically for a 3x2 array; the series also offers 2x2 and 3x3 configurations to suit different screen totals.
Which documentation is required for project submittals?
Installers can use the LCM3X2U Technical Drawing (PDF), the LCM3X2U CAD Drawing (dwg), or the LCM3X2U Installation Manual (PDF) for technical and submittal requirements.
