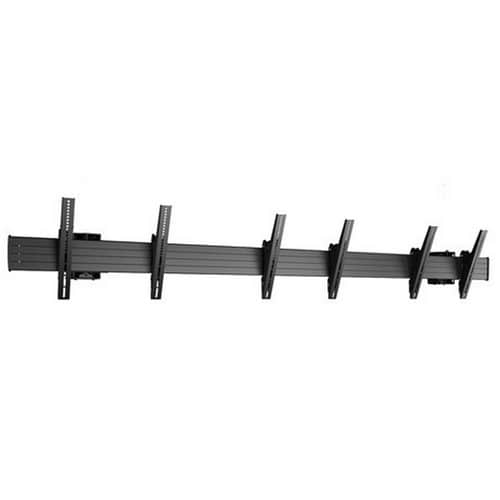

Fusion® Large Ceiling Back-to-Back 3 x 1 Portrait Add on Accessory
Portrait orientation add-on for 3x1 large ceiling menu boards, supporting 40-55" displays with tilt adjustment
The Chief FCAB3X1UP is a specialized add-on accessory designed for the Fusion® Large Ceiling Mounted Menu Board series, specifically configured for a 3x1 screen array in a portrait orientation. This component allows installers to construct multi-display menu boards in prominent high-traffic locations where wall mounting is not an option. The system utilizes a single horizontal extrusion to ensure all screens remain perfectly aligned across the array. Each display interface features Centris technology, allowing for a tilt range of +5° to -20° to optimize viewing angles. The assembly supports a weight capacity of 125 lbs (56.7 kg) per display. For installations requiring larger displays, this accessory is compatible with 40-55" (1016 - 1397 mm) diagonal screens, or up to 65" (1651 mm) when paired with FCAX extension brackets. The tool-free screen engagement simplifies the installation process, and the system can be further secured with a padlock for enhanced security.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 109.5" x 13" x 12" (278.1 x 33 x 30.5 cm) |
| Shipping Weight | 47 lbs (21.3 kg) |
| Typical Screen Size | 40" - 55" (1016mm - 1397mm and up to 65" (1651mm) with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | Tilt |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 6 |
All other specifications 8
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | + 5° / - 20° |
| UPC | 841872158945 |
| VESA Mounting Pattern | Any width x 100 - 800mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it

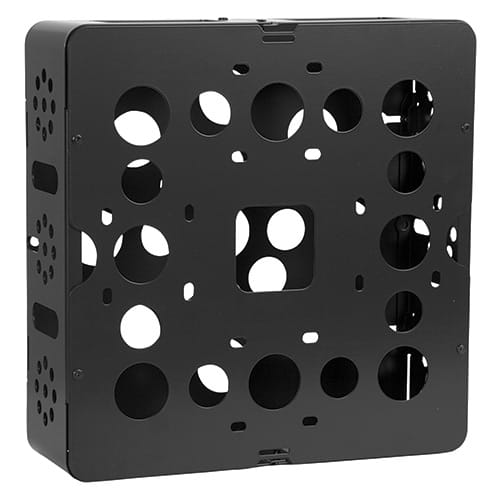

Fusion® Medium Storage Accessory, PC
FCA515$213.60

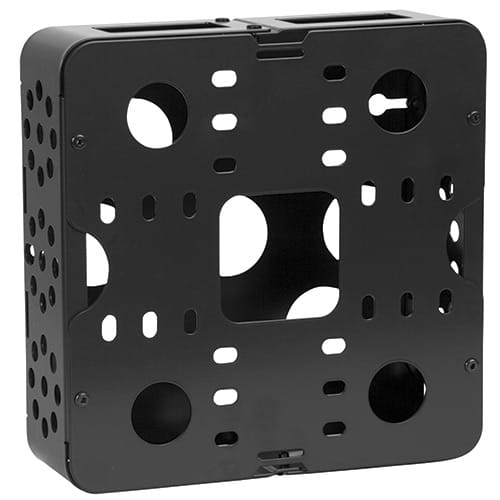

Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20

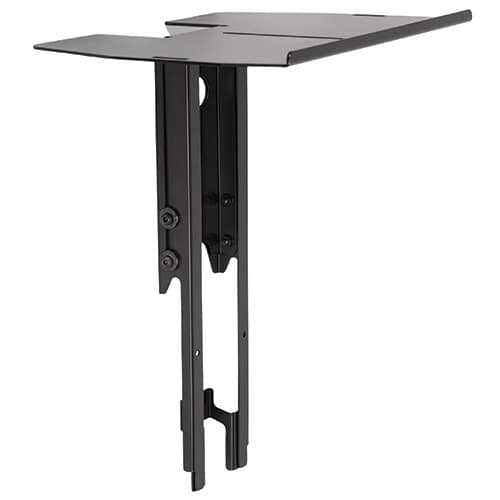

Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60

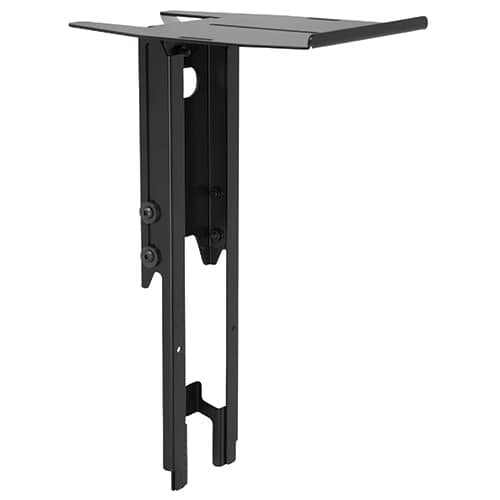

Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80

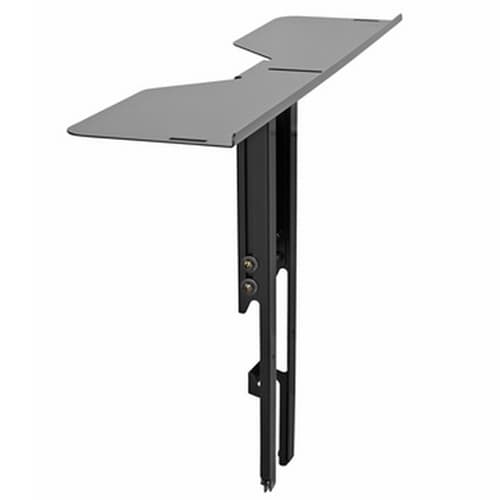

Fusion® 24 Inch Upper Component/ VC Shelf
FCA503$176.80

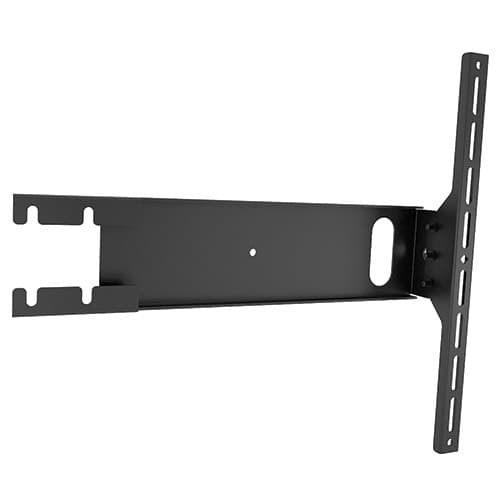

Side Speaker Adapters
