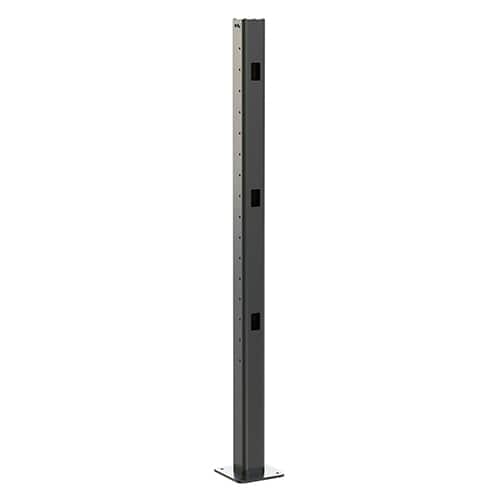

Fusion® Bolt-Down Column
Bolt-down freestanding column for permanent video wall applications, supporting 42"-65" displays with 500 lbs capacity
The Chief FMSFC Fusion® Bolt-Down Column provides a permanent, freestanding foundation for constructing video walls in high-traffic, prominent locations. This modular column is part of the Fusion® series, allowing integrators to configure multi-display arrays for professional environments. Designed for landscape orientation, the column supports displays in the 42"-65" (1067mm - 1651mm) range. It features a massive 500 lbs (227 kg) weight capacity and provides essential fine-tuning capabilities during installation, including lateral shift and micro-adjustments for both plumb and manual height up to 0.75" (19 mm) per screen. To achieve a center-of-display height of 64.5" (164cm) from the floor, this 66.38" (168.6 cm) column can be extended by 18" (46cm) or 36" (91cm) using appropriate extenders. The system includes integrated cable management to ensure a clean, professional finish. This TAA compliant solution is ideal for permanent, fixed-location deployments where floor stability is paramount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | Max center display height is 64.5” (164cm)These can be increased by 18” (46cm) or 36” (91cm) with extenders |
| Depth | 8 in (20.3 cm) |
| Height | 66.38 in (168.6 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 66.38” x 8” x 8” (1686 x 203 x 203mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 27 lbs (12.3 kg) |
All other specifications 12
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
| Weight Capacity | 500 lbs (227 kg) |
| Width | 8 in (20.3 cm) |
| Adjustability | Fixed |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | ModularMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872175812 |
| VESA Mounting Pattern | 400mm for landscape and 800mm for portrait |
| Certifications | TAA |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Questions about this part
Will the FMSFC fit my 55-inch display?
Yes, the FMSFC is designed for displays in the 42"-65" (1067mm - 1651mm) range. It supports VESA patterns of 400mm for landscape and 800mm for portrait orientation.
What accessories do I need to complete a multi-display video wall?
The modular system supports several accessories, including the Fusion® UNIVERSAL CLAMP KIT, 2 (FCA520) and various component shelves like the Fusion® Stackable Component Shelf (FCA870) or the Proximity™ Component Storage Panel (CSMP9X12).
How do I adjust the screen height and leveling once installed?
The FMSFC offers micro-adjustments of up to 0.75" (19 mm) for both plumb alignment and manual height per screen to ensure a perfectly leveled array.
Can I increase the height of the column?
Yes, the standard 66.38" (168.6 cm) column height can be increased by 18" (46cm) or 36" (91cm) through the use of extenders.
What documentation is available for submittals?
Technical drawings are available in both PDF and DWG formats, and the Fusion Modular System Installation Manual is provided for setup guidance.
