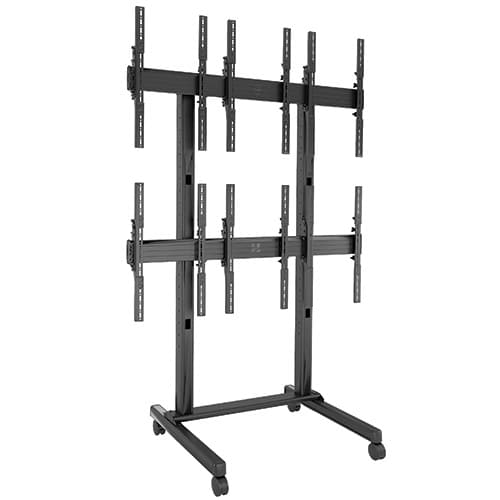

Fusion® 3 x 2 Portrait Micro-Adjustable Large Freestanding Video Wall Cart
Freestanding 3x2 portrait video wall cart for 42–46 inch displays with micro-adjustable height, plumb, and lateral shift
The Chief LVM3X2UP is a freestanding Fusion® video wall cart designed for 3x2 portrait screen arrangements. This solution is built for prominent locations and temporary installations where mobility is required. It is specifically configured for 42–46" screens; however, larger displays can be accommodated using FCAX brackets. This TAA compliant and UL Listed cart features smooth-rolling casters for effortless positioning, with one locking caster included per leg. For permanent placements, the cart can be converted using FCA776 leveling feet. Precision is managed through integrated micro-adjustments that allow for independent height, plumb, and lateral shift calibration of up to 0.75" (19 mm) per screen. The system features integrated cable management to maintain a clean installation. This cart is part of the Fusion® Micro-Adjustable Freestanding Video Wall Cart Solutions series and is built for professional system integrators requiring a versatile, universal solution for multi-display video wall arrays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 24.47" (622 mm) (minimum bottom row) - 90.6" (2302 mm) (maximum top row) |
| Depth | 40.4 in (102.6 cm) |
| Height | 106.7 in (271 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Dimensions | 75" x 39" x 9" (190.5 x 99.1 x 22.9 cm) |
| Shipping Weight | 269 lbs (122 kg) |
All other specifications 13
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 68 in (172.7 cm) |
| Adjustability | Height AdjustableMicro-Adjustable |
| Application | Cart |
| Array Configuration | 3x2 |
| Color | Black |
| Number of Displays | 6 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872157740 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Verified fitment
Questions about this part
Will the LVM3X2UP fit my displays?
This cart is configured for 42–46" screens in a 3x2 portrait arrangement. It is verified against 10,042 display models from 264 manufacturers, including Samsung 400CX, Sony 50BZ30P, LG 32LC2RR, and Panasonic 55VW3KD.
Can I use this for displays larger than 46 inches?
Yes, larger displays can be accommodated if you utilize FCAX brackets to extend the mounting capability.
How do I make this a permanent installation?
To convert this mobile cart for a permanent setup, you will need to acquire the FCA776 Fusion® LVM Leveling Feet Accessory.
What kind of adjustments can be made once the screens are mounted?
The system allows for micro-adjustments of up to 0.75" (19 mm) for height, plumb, and lateral shift to ensure perfect screen alignment.
Does this cart include storage for components?
While the cart provides integrated cable management, additional component or camera shelves can be added using accessories like the FCA820 or FCA500.
