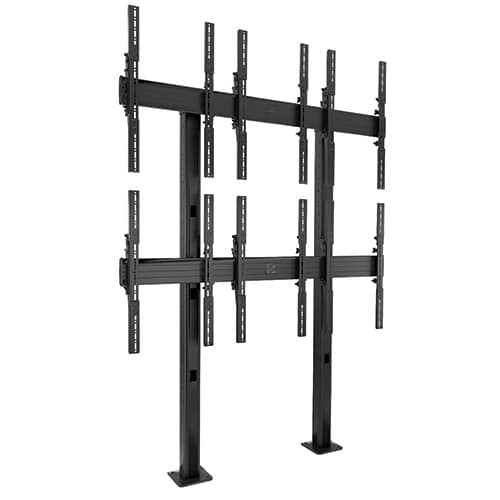

Fusion® 3 x 2 Portrait Micro-Adjustable Large Bolt-Down Freestanding Video Wall
Portrait video wall system for 6-display arrays, featuring micro-adjustability and a bolt-down installation.
The Chief LBM3X2UP is a Fusion® Series bolt-down freestanding video wall solution designed for permanent installations in prominent locations. This 3x2 array configuration is configured for portrait orientation to support 6 displays. To ensure a perfectly aligned visual surface, the system provides micro-adjustability including lateral shift, plumb adjustment, and manual height adjustment of up to 0.75" (19 mm) per screen. The center of the display range spans from 17.38" (441 mm) for the minimum bottom row to 82.38" (2092 mm) for the maximum top row. This unit features integrated cable management to maintain a clean aesthetic in high-traffic areas. While this configuration is optimized for a 3x2 portrait arrangement, larger displays can be accommodated using FCAX brackets. This TAA compliant and UL Listed mount is built for professional, permanent video wall deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 17.38" (441 mm) (minimum bottom row) - 82.38" (2092 mm) (maximum top row) |
| Depth | 9.61 in (24.4 cm) |
| Height | 98.6 in (250.4 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 98.6" x 68.0" x 9.61" (2504 x 1727 x 244 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 210 lbs (95.3 kg) |
All other specifications 13
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 68 in (172.7 cm) |
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 3x2 |
| Color | Black |
| Number of Displays | 6 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872157719 |
| Certifications | TAAUL Listed |
