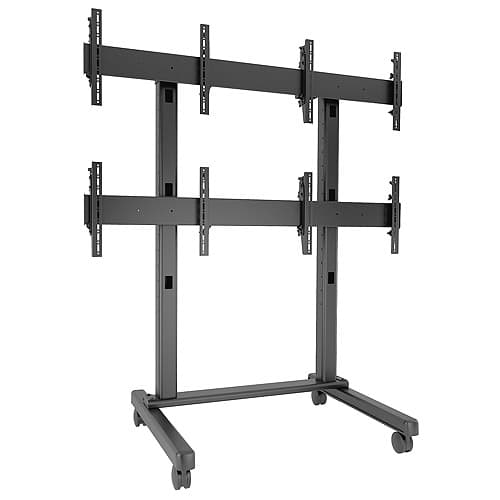

Fusion® 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart
2x2 micro-adjustable video wall cart for 42-50" displays, supports 4 screens with independent height, plumb, and lateral shift adjustment
The Chief LVM2X2U is a Fusion® 2 x 2 Micro-Adjustable Large Freestanding Video Wall Cart designed for permanent, high-visibility installations. This bolt-down solution allows integrators to construct stable video walls in prominent locations where floor mounting is required. The system is configured for a 2x2 array, accommodating 42-50" displays to ensure precise alignment across the video wall. For professional aesthetics, the rear of the displays and mounting components can be covered using Chief Fusion® Universal Back Covers. Precision alignment is managed through independent micro-adjustments. Installers can perform manual height adjustments of up to 0.75" (19 mm) per screen, alongside plumb and lateral shift adjustments of up to 0.75" (19 mm) to correct for uneven surfaces or slight structural deviations. This cart is TAA compliant and UL listed, making it suitable for government and high-compliance commercial projects. Integrated cable management is built into the structure to maintain a clean, professional appearance once the installation is complete. For larger display sizes, compatibility with FCAX extension brackets should be verified using MountFinder™.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 24" (609.6 mm) (minimum bottom row) - 72" (1829 mm) (maximum top row) |
| Depth | 40.4 in (102.6 cm) |
| Height | 80.5 in (204.5 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 80.5" x 72.5" x 40.4" (2045 x 1842 x 1026 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 219 lbs (99.3 kg) |
All other specifications 14
| Typical Screen Size | 42"-50" (1067mm - 1270mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 72.5 in (184.2 cm) |
| Adjustability | Height AdjustableMicro-Adjustable |
| Application | Cart |
| Array Configuration | 2x2 |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872155449 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® LVM and LBM 3 x 1 Accessory
FCA3X1U$2,297.60
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® Center Camera Shelf - 8 Inch
FCA820$126.40
Fusion® Center Camera Shelf - 14 Inch
FCA821$166.40
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Fusion® 24 Inch Upper Component/ VC Shelf
FCA503$176.80
Verified fitment
Questions about this part
Will the LVM2X2U fit my specific displays?
The LVM2X2U is verified against 11,837 display models from 340 manufacturers, including Sony 50BZ30P, Samsung 400CX, LG 32LC2RR, and Philips 32FD9954. It is optimized for 42"-50" screens in a 2x2 arrangement.
What accessories are needed to complete the video wall installation?
While this cart provides the base structure, you may need the Fusion® Universal Clamp Kit (FCA520) or various component shelves like the Fusion® Stackable Component Shelf (FCA870) to manage hardware and cables.
How do I adjust the screen alignment after mounting?
The LVM2X2U features micro-adjustments that allow you to adjust the height, plumb, and lateral shift of each screen by up to 0.75" (19 mm) to ensure a perfectly flush array.
Can I use this cart for larger than 50-inch displays?
Yes, while the typical screen size is 42"-50", larger displays can be accommodated by using FCAX series extension brackets.
Is the LVM2X2U suitable for permanent high-traffic areas?
Yes, this is a bolt-down solution designed for permanent applications in prominent locations, providing a stable and secure freestanding installation.
