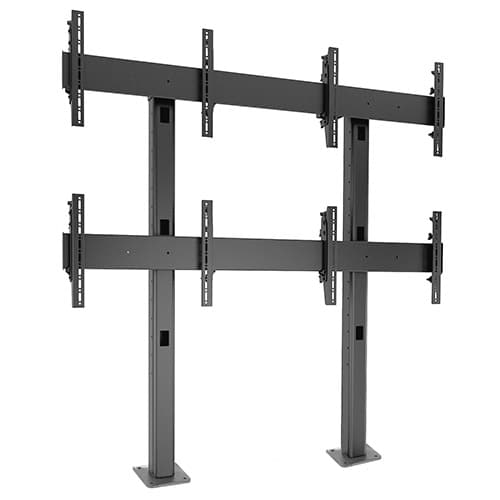

Fusion® 2 x 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall
2x2 array freestanding video wall mount for 42–50" displays, featuring micro-adjustable height, plumb, and lateral shift
The Chief LBM2X2U is a Fusion® 2 x 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall solution designed for permanent installations in prominent public spaces. This 2x2 array configuration is engineered to accommodate 42-50" displays in a landscape orientation. For larger displays, the use of FCAX brackets is required; installers should use MountFinder™ to confirm specific compatibility. This bolt-down application provides a stable, permanent foundation for high-impact video walls. To achieve precise visual alignment across the array, the LBM2X2U features micro-adjustability, allowing for up to 0.75" (19 mm) of adjustment for plumb, manual height, and lateral shift for each individual screen. This integrated system includes cable management to maintain a clean, professional aesthetic. For a finished appearance, Chief Fusion® Universal Back Covers can be used to conceal displays, components, and the mounting structure from behind.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Center of Display To Floor Table Range | 16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row) |
| Depth | 9.43 in (24 cm) |
| Height | 72.9 in (185.2 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 72.9" x 72.9" x 9.43" (1852 x 1851 x 239 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 177 lbs (80.3 kg) |
All other specifications 13
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 72.9 in (185.2 cm) |
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 2x2 |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872157511 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® Stackable Component Shelf
FCA870$111.20
Fusion® LBM Video Wall Height Extensions - FCABX36
FCABX36$264.00
Fusion® 14 Inch UPPER COMPONENT/VC SHELF
FCA501$135.20
Fusion® LBM Video Wall Height Extensions - FCABX18
FCABX18$220.00
Fusion® 18 Inch LOWER COMPONENT/VC SHELF
FCA500$148.80
Fusion® Freestanding and Ceiling Extension Brackets-FCAX20
FCAX20$217.60
Fusion® 8 Inch UPPER VC SHELF
FCA502$108.80
Fusion® 24 Inch Upper Component/ VC Shelf
FCA503$176.80
Verified fitment
Questions about this part
Will the LBM2X2U fit my specific displays?
This mount is verified against 12,098 display models from 347 manufacturers, including the Sony 55BZ40P, Samsung 400CX, and LG 32LC2RR. It is designed for a 2x2 array of 42" to 50" screens.
What is required to install displays larger than 50 inches?
While this specific LBM2X2U SKU is for 42-50" displays, larger screens can be supported using FCAX brackets. You should use Chief MountFinder™ to verify compatibility for your specific screen size.
How do I adjust the alignment of individual screens?
The LBM2X2U allows for precise alignment via micro-adjustments. You can independently adjust the plumb, lateral shift, and manual height of each screen by up to 0.75" (19 mm).
What accessories are needed for cable management or component storage?
You can add the Chief Fusion® Stackable Component Shelf (FCA870) or the Proximity™ Component Storage Panel (CSMP9X12). For a clean rear view, use the Fusion® Flat Panel Back Cover (FCAC2X1LB).
What is required for the floor installation?
This is a bolt-down solution designed for permanent application. The structure has a total height of 72.9" (185.2 cm) and a footprint width of 72.9" (185.2 cm) with a 9.43" (24 cm) depth.
