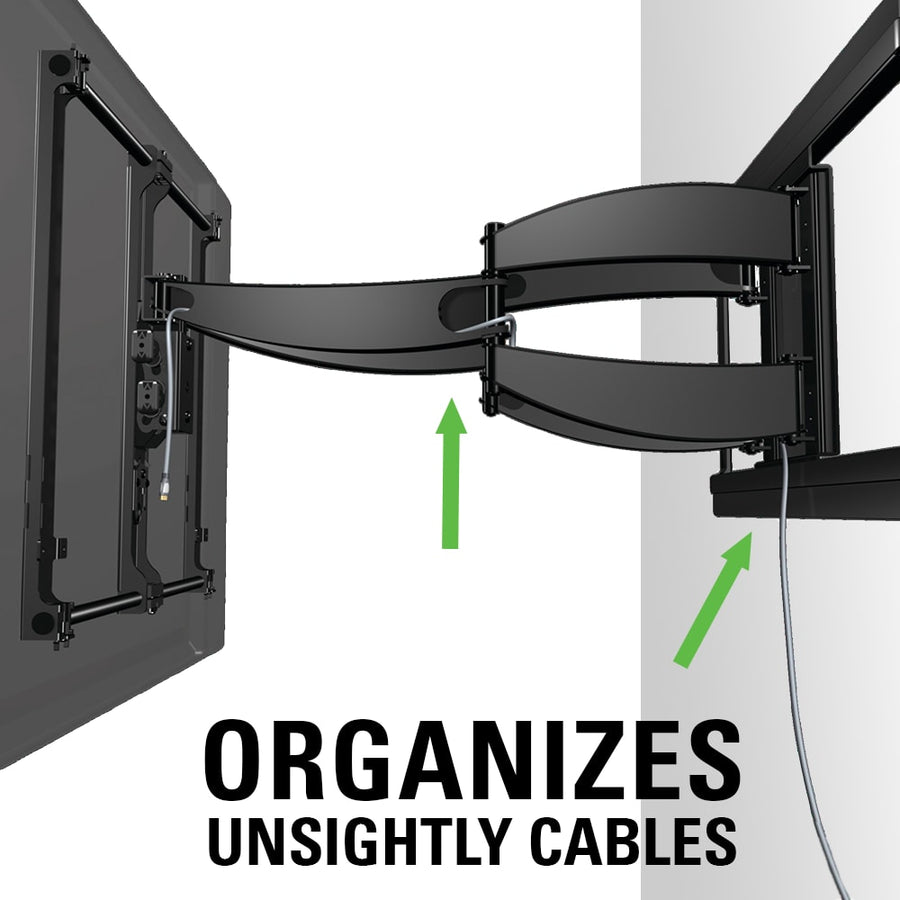

Full-Motion+ Mount For 46" - 90" flat-panel TVs up 150 lbs.
Full-motion+ mount for 46"–90" displays up to 150 lbs, featuring tool-free tilt, swivel, and lateral shift adjustments
The Sanus VLF628-B1 is a Full-Motion+ mount designed to provide optimal viewing angles for 46" to 90" flat-panel TVs with a weight capacity of 150 lbs (68 kg). This UL Listed wall mount offers significant flexibility for corner installations or large-format displays that require precise positioning. Users can tilt the display between +5° and -15°, swivel it up to 90° in either direction, and utilize a roll adjustment of +2° / -2° to ensure the screen is perfectly level. The design allows for lateral shift to achieve the ideal viewing position and provides a depth range of 3.25" to 28.00" for varying wall clearances. To ensure a secure installation, the mount features a safety tab that provides an audible click once the TV is correctly connected. This model is verified against 11,402 display models from 257 manufacturers, including Sony 50BZ35P, Samsung 400CX, and LG 100QNED8.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.25-28.00 |
| Height | 20.16 in (51.2 cm) |
| Shipping Dimensions | 36.94" x 21.46" x 4.96" (938.3 x 545.1 x 126 mm) |
| Shipping Weight | 54.78 lbs (24.9 kg) |
| Typical Screen Size | 46" - 90" (117cm - 228cm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 33.88 in (86.1 cm) |
| Adjustability | Lateral ShiftSwivelTilt |
All other specifications 10
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Masonry Bit - Concrete InstallationsElectric DrillHammerPhillips Head ScrewdriverTape Measure |
| Roll | +2° / -2° |
| Swivel | +90° / -90° |
| Tilt | +5° / -15° |
| Universal Mounting | Yes |
| UPC | 793795530981 |
| VESA Mounting Pattern | 200 x 200mm200 x 300mm200 x 400mm300 x 200mm300 x 300mm300 x 400mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 300mm500 x 400mm600 x 200 mm600 x 300mm600 x 400mm |
| Certifications | UL Listed |
Verified fitment
Questions about this part
Will the Sanus VLF628-B1 fit my specific TV model?
This mount is verified against 11,402 display models from 257 manufacturers. Examples of compatible models include the Sony 43BZ35P, Samsung 400CX, and LG 100QNED85AU.
What VESA mounting patterns are supported by the VLF628-B1?
The mount supports a wide range of VESA patterns, including 200x200mm, 300x300mm, 400x400mm, 400x200mm, 600x400mm, and 600x200mm.
What tools do I need to install this mount?
To complete the installation, you will need an electric drill, a Phillips head screwdriver, a tape measure, a hammer, a 1/2" socket wrench, and a 3/8" masonry bit for concrete installations.
How much can I adjust the tilt and swivel on this mount?
The VLF628-B1 offers a tilt range of +5° to -15° and a swivel range of +90° to -90° for comprehensive positioning.
Can I use this mount in a corner?
Yes, the high swivel range and extension capabilities make this model ideal for mounting a TV in a corner.
