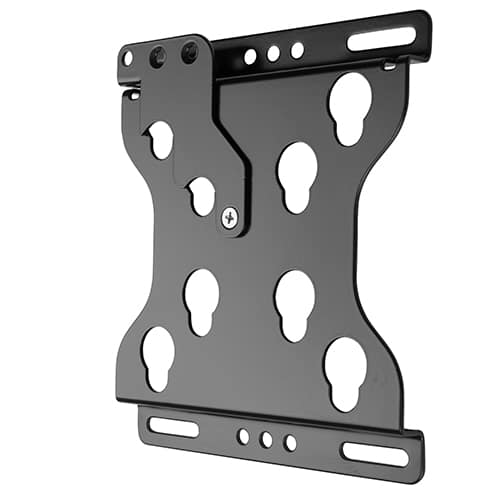

FSR100, Small Flat Panel Fixed Wall Display Mount
Fixed wall mount for 10–32" displays, featuring an ultra-low 0.75" installation depth and 45 lbs capacity
The FSR100 is a small fixed wall display mount designed for digital signage and hospitality applications where a slim profile is required. This universal solution provides an ultra-low-profile installation depth of only 0.75" (19 mm), making it ideal for tight spaces in public environments. The mount supports both landscape and portrait orientations, offering flexibility for various signage layouts. It is engineered for fast installation using Chief's exclusive Q-Latch™ Mounting System. This mount is compatible with VESA mounting patterns of 50 x 50mm and 100 x 100mm. With a weight capacity of 45 lbs (45.4 kg), it is a secure solution for small-format displays. For many installations, an interface bracket such as the FSB1U or the FSB4073 may be required to complete the mounting setup. This model is UL certified for safety and reliability.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.75 in (1.9 cm) |
| Shipping Dimensions | 10.47" x 6.42" x 2.21"(266 x 163.1 x 56.2 mm) |
| Shipping Weight | 2-2 lbs (0.91-0.91 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 45 lbs (45.4 kg) |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
All other specifications 5
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872169026 |
| VESA Mounting Pattern | 50 x 50mm,100 x 100mm |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
50x50mm VESA Interface Bracket
FSB4073$47.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Custom Small Flat Panel Interface Bracket - 200 x OFB157, M6
FSB4226BDiscontinued
Small Flat Panel Interface Bracket, 200 x 200mm VESA, M8
FSB4041Discontinued
Custom Small Flat Panel Interface Bracket (200 x OFB157, M6)
FSB4226BDiscontinued
Verified fitment
Questions about this part
Will the FSR100 fit my small display?
The FSR100 is verified against 2,716 display models from 185 manufacturers, including Samsung 204B, LG 10SM3TB, and Sony FWD32R420A.
What do I need to buy to complete the installation?
Depending on your specific display, you may need an interface bracket such as the FSB1U, FSB4243B, or the FSB4073 for 50x50mm VESA patterns.
Can this mount be installed in portrait orientation?
Yes, this mount is designed to support both landscape and portrait mounting orientations for your digital signage.
How far from the wall will the display sit?
This mount provides an ultra-low-profile installation with a minimum depth of 0.75" (1.9 cm) from the wall.
What is the maximum weight capacity for the FSR100?
The FSR100 has a weight capacity of 45 lbs (45.4 kg).
