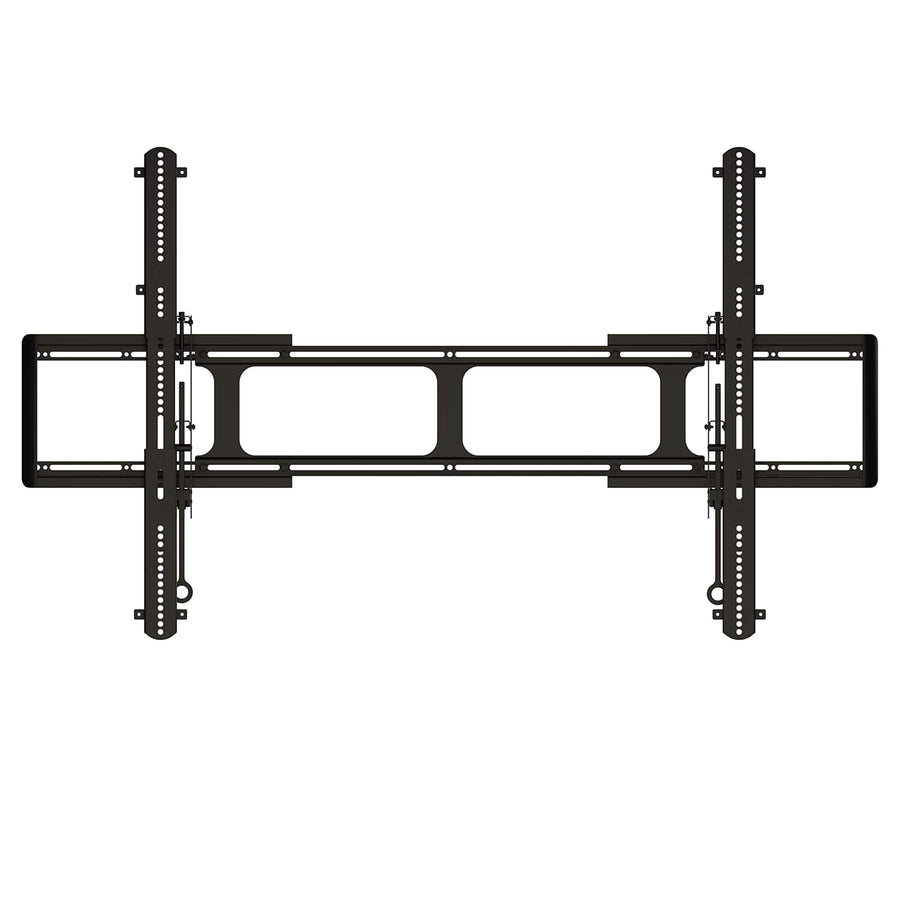

Fixed Mount For 65" - 140" flat-panel TVs up 300 lbs
Super slim fixed mount for 65" - 140" displays, 300 lbs capacity, with an expandable wall plate and lateral shift
The Sanus VXL7-B2 is a super slim fixed position wall mount engineered for extra-large displays ranging from 65" to 140". Designed for strength and versatility, this steel frame mount supports TVs up to 300 lbs (136.1 kg). The expandable wall plate extends from 33" (84.9 cm) to 52" (134.4 cm), which accommodates large VESA patterns up to 1100 x 700mm and allows for 3-stud installation. This open wall plate design enables mounting over existing wall boxes and electrical outlets. The mount provides a profile of only 1.96" (5 cm), placing the TV close to the wall to blend with the room's décor. Installers can achieve precise positioning using lateral shift adjustments and post-leveling features. For added security, a padlock can be attached (padlock not included). This series is UL listed and includes a safety tab to ensure a secure connection during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.96 in (5 cm) |
| Height | 17.5 in (44.5 cm) |
| Overall Dimensions | 33.4" x 1.96" x 17.5" (848.4 x 49.8 x 444.5 mm) |
| Package Count | 1 |
| Package Depth | 36.55 in (92.8 cm) |
| Package Height | 3.26 in (8.3 cm) |
| Package Width | 10.7 in (27.2 cm) |
| Product Weight | 19.56 lbs (8.9 kg) |
All other specifications 10
| Shipping Dimensions | 36.55" x 10.70" x 3.26" (928.4 x 271.8 x 82.8 mm) |
| Shipping Weight | 19.56 lbs (8.9 kg) |
| Typical Screen Size | 65-140in |
| Weight Capacity | 300 lbs (136.1 kg) |
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/16" Drill Bit3/8" Masonry Bit - Concrete Installations7/32" Drill BitAwlElectric DrillHammerLevelPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
| Universal Mounting | Yes |
| UPC | 793795540560 |
| VESA Mounting Pattern | 1000 x 600mm1000 x 700mm1000 x 800mm1100 x 600mm1100 x 700mm1100 x 800mm200 x 200mm300 x 200mm300 x 300mm300 x 300mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 400mm500 x 500mm600 x 500mm600 x 600mm700 x 600mm700 x 700mm700 x 800mm800 x 600mm800 x 700mm800 x 800mm900 x 600mm900 x 700mm900 x 800mm |
Resources
Verified fitment
Questions about this part
Will the Sanus VXL7-B2 fit my large display?
Yes, it is verified for 422 display models across 30 manufacturers, including Samsung 98QN90FA, LG 115QNED92BU, Sony 75BZ30P, and TCL 115X11G.
What tools are required for installing the VXL7-B2?
Installation requires an electric drill, level, stud finder, tape measure, pencil, Phillips head screwdriver, wrench, hammer, awl, 1/2" socket wrench, 3/16" drill bit, 3/8" masonry bit, and 7/32" drill bit.
How does the VXL7-B2 differ from standard fixed mounts?
The VXL7-B2 offers an expandable wall plate for 3-stud spans and includes lateral shift and post-leveling adjustments to correct position after hanging.
Can this mount be installed over an electrical outlet?
Yes, the open wall plate design is specifically designed to allow for mounting over wall boxes and outlets.
What VESA patterns are compatible with this mount?
It supports a wide range of patterns including 200x200mm up to 1100x800mm, and specifically accommodates patterns up to 1100 x 700mm.
