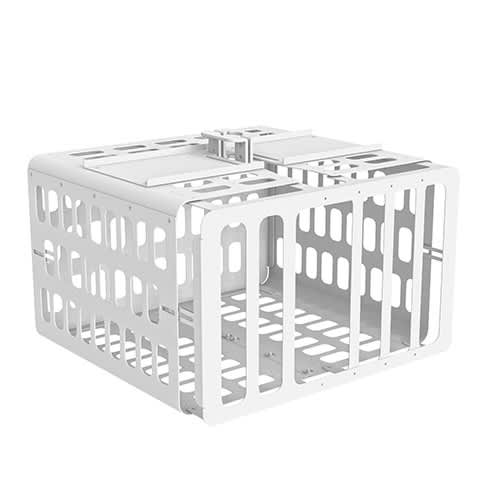

Extra-Large Large Venue Projector Guard, White
Extra-large white steel security cage for large venue projectors, featuring telescoping panels and removable doors for service access
The PG4AW is an extra-large venue projector guard designed to secure large-format projectors within a locked steel enclosure. This white security cage protects expensive equipment from both theft and accidental damage in public spaces. Engineered for large venues, the PG4AW features telescoping front and back panels that accommodate projector depths ranging from 22" to 27" (559 - 685 mm). The design includes an adjustable front opening to accommodate various lens positions, ensuring the guard fits the specific optical requirements of your hardware. This enclosure is compatible with all Chief projector mounts and is specifically noted for compatibility with the VCM and VCT series. A significant advantage for installers is the ability to retrofit this guard onto pre-existing installations without the need to disturb or recalibrate the current projector settings. For maintenance, the unit features removable doors to allow easy access to the projector during service.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 16 in (40.6 cm) |
| Overall Dimensions | 16" x 26" x 27” (406 x 660 x 686 mm) |
| Product Weight | 47 lbs (21.3 kg) |
| Shipping Weight | 53 lbs (24 kg) |
| Width | 26 in (66 cm) |
| Accessory Type | Cages and Cases |
| Application | Ceiling |
All other specifications 7
| Color | White |
| Projector Size | Extra-Large |
| Solution Type | Universal |
| Special Features | Large Venue |
| TAA Compliant | Yes |
| UPC | 841872172514 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the PG4AW fit my existing projector setup?
Yes, this guard is compatible with all Chief projector mounts and can be retrofitted to existing installations without disturbing the current projector alignment.
Can this guard be used with VCM or VCT series mounts?
The PG4AW is specifically confirmed for use with both the VCM and VCT series projector mounts.
What is the depth range for this security cage?
The enclosure features telescoping front and back panels that allow you to adjust for projector depths between 22" and 27" (559 - 685 mm).
How do I access the projector for maintenance once the cage is installed?
The PG4AW is designed with removable doors to ensure you have easy access to the projector for servicing or lens adjustments.
Is the PG4AW TAA compliant?
Yes, the PG4AW is a TAA compliant security solution for large venue environments.
