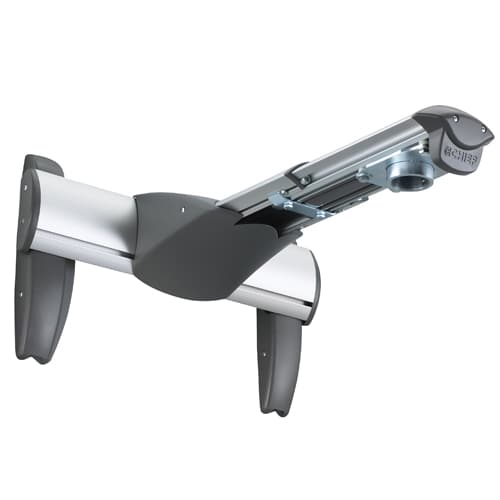

Heavy Duty Wall Mount Accessory, Dual Stud
Heavy duty wall mount accessory for dual stud, wood, or concrete installations with 150 lbs capacity
The Chief WMA2S is a heavy duty wall mount accessory for mounting projectors or flat panels in dual stud or concrete applications. This unit is designed for scenarios where ceiling mounting is not a viable option, providing a secure alternative for small projectors and flat panels. The WMA2S serves as a replacement for the WMA300 model and functions similarly to the WM210S. This accessory provides an extension range of 13" - 21" (33.02cm - 53.34mm) to position equipment away from the wall. For complete installation, this SKU requires the purchase of a CMS extension column, which is not included. The mount features micro-adjustable capabilities and lateral shift to assist with precise alignment during and after installation. Note that total weight capacity is dependent on the specific wall structure encountered during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 13 in (33 cm) |
| Extension | 13" - 21" (33.02cm - 53.34cm) |
| Height | 11.5 in (29.2 cm) |
| Overall Dimensions | 11.5" x 18.5" x 13.0" (292 x 470 x 330 mm) |
| Shipping Weight | 19.7 lbs (8.9 kg) |
| Weight Capacity | concrete 150_lbs_ wood 150_ steel stud 75lbs |
| Width | 18.5 in (47 cm) |
| Accessory Type | Mounting Hardware |
All other specifications 8
| Adjustability | Lateral ShiftMicro-Adjustable |
| Application | Wall |
| Color | Silver |
| Projector Size | Small |
| Protective Glass | No |
| Special Features | Height Assist |
| TAA Compliant | No |
| UPC | 841872149721 |
Resources
You'll need these with it
Questions about this part
What else do I need to buy to use the WMA2S?
You must purchase a CMS extension column to complete the installation, as it is not included with this accessory.
What is the weight capacity of the WMA2S?
The capacity is up to 150 lbs for concrete or wood, and 75 lbs when mounted to steel studs, depending on the wall structure.
Will this mount fit my display or projector?
The WMA2S is designed for small projectors and flat panels and provides an extension range of 13" - 21" (33.02cm - 53.34cm).
Can I adjust the position of the equipment once it is mounted?
Yes, this mount features micro-adjustable capabilities and lateral shift to assist with equipment alignment.
Which document should I use for submittals?
For technical submittals, you can download the WMA2S Technical Drawing (PDF) or the WMA2S CAD Drawing (dwg) from the resources section.
