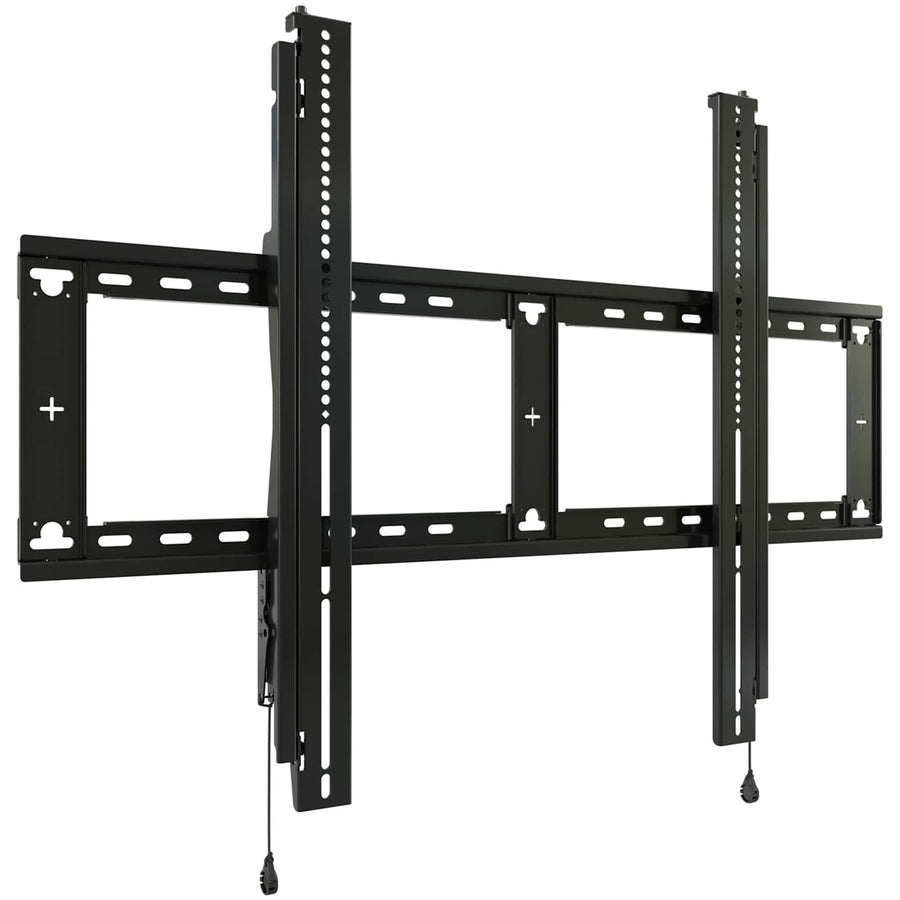

Extra-Large Fit Fixed Display Wall Mount
Extra-large fixed wall mount for 49"–98" displays, 250 lbs capacity, with 1.5" low-profile depth and post-installation leveling
The Chief RXF3 is an extra-large fixed display wall mount designed for typical screen sizes ranging from 49" to 98". This mount supports VESA mounting patterns up to 960 x 650 mm and provides a robust 250 lbs (113.4 kg) weight capacity. Engineered for a low-profile installation, it maintains a 1.5" (38 mm) depth, which assists with ADA compliance in professional AV environments. The re-designed, rigid wall plate is compatible with triple 16" (406 mm) wall studs and features an open design to allow for flexible positioning around power and data wall boxes. For precise alignment, the RXF3 includes 0.75" (19.1 mm) of manual height adjustment via a post-installation leveling screw. The system utilizes GlideLock technology for toolless lateral shift, allowing installers to achieve perfect screen positioning once the display is secured. This UL Listed mount is part of the Fit™ Fixed Display Wall Mounts series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.5 in (3.8 cm) |
| Height | 27.05 in (68.7 cm) |
| Manual Height Adjustment | 0.75 in (19.1 mm) |
| Minimum Depth | 1.5 in (3.8 cm) |
| Overall Dimensions | 27.05” x 38” x 1.5” (687 x 965 x 39 mm) |
| Shipping Weight | 18.04 lbs (8.2 kg) |
| Typical Screen Size | 49" - 98" (1245mm - 2489mm) |
| Wall Stud Compatibility | Triple 16" (406 mm) |
All other specifications 11
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 38 in (96.5 cm) |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872176680 |
| VESA Mounting Pattern | 100 x 100mm - 960 x 650mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PACSBM Universal Soundbar Mount
PACSBM$68.00
PAC526, Large In-Wall Storage Box
PAC526$116.80
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
PAC525, In-Wall Storage Box
PAC525$79.20
CMK50 CordMate II Kit
CMK50$50.15
Metal Stud Anchor Kit - 4 Anchors
PAC115$27.20
Cable Lock Accessory - PACLK1
PACLK1$24.00
1 RU Flanged Blank Rack Panel, Steel
EB1$17.10
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Da-Lite Floating Mounting Bracket White
77027$106.40
Verified fitment
Questions about this part
Will the Chief RXF3 fit my specific display model?
Yes, it is verified against 8,085 display models from 222 manufacturers, including Samsung 550DX, Sony 75BZ30P, LG 110UH5QH, Panasonic LH98QM1KD, and Philips 42PF1000.
What tools are needed for installation?
The installation requires a 10" (254 mm) ball end hex-key, which is included with the mount for adjusting the leveling screw.
What is required for wall mounting and stud spacing?
The wall plate is compatible with triple 16" (406 mm) wall studs and provides an open design for positioning around existing power and data boxes.
Can I adjust the screen height once it is mounted?
The RXF3 provides 0.75" (19.1 mm) of manual height adjustment via a post-installation leveling screw to ensure correct placement.
What accessories are compatible with the RXF3 mount?
You can add components like the PAC526 Large In-Wall Storage Box, the PACSBM Universal Soundbar Mount, or the PACLK1 Cable Lock Accessory.
