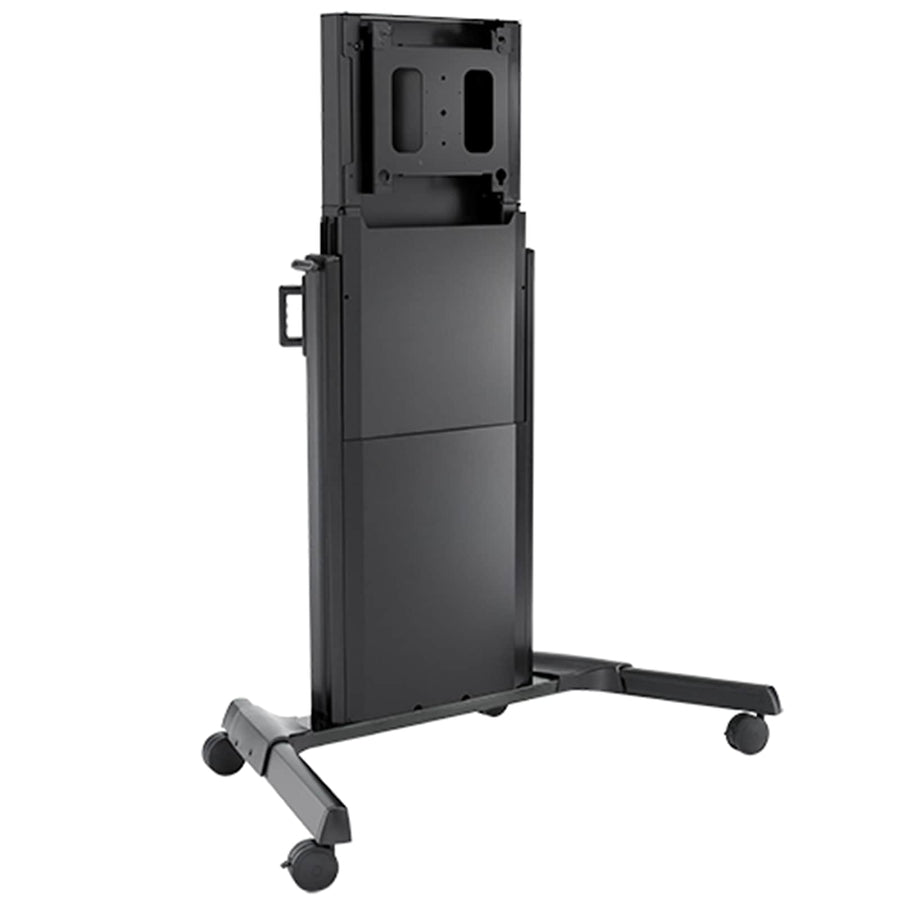

Extra-Large Electric Height Adjust Cart, CH
Electric height adjustable floor-cart for large displays, offering 26" of vertical lift and a 310 lbs capacity
The XPD1U-CH is an electric height adjustable floor-cart designed to improve accessibility in classrooms and boardrooms through automated vertical movement. This series provides 26" (660 mm) of vertical lift, allowing users to easily adjust the display height for different viewing requirements. It features an integrated control pad for easy height adjustments and includes an anti-collision technology system that halts and reverses motion upon encountering an obstruction to prevent damage or injury. To maintain cable integrity during movement, the cart includes integrated cable management and strain relief. This unit is UL Listed for the Tall Institutional Cart Standard and is built with a sleek, minimalist aesthetic. The XPD1U-CH is part of a wider series that includes floor-support (XFD1U/LFE1U), wall mount (XSD1U), and other cart variants (XPD1U/LPE1U). For specialized control, users can add the PACREM Remote Control Kit or the PACBLU Bluetooth™ Dongle to utilize the LINAK® smart phone app.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Weight Capacity | 310 lbs (140.6 kg) |
| Adjustability | Automated, Height Adjustable, Micro-Adjustable |
| Application | Floor-Cart |
| Power Cord | CH Cord |
| Special Features | Height Assist |
| TAA Compliant | No |
| VESA Mounting Pattern | 200 x 200mm – 860 x 510mm |
| Certifications | UL Listed |
Resources
You'll need these with it
FHB5038 Fusion® Vesa Adaptor
FHB5038$118.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00
PACBLU Bluetooth Dongle
PACBLU$92.80
Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
ClickConnect Padlock
PAC138$37.60
Video Conferencing Camera Shelf – 14", for Extra-Large Displays
PAC811$200.00
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Verified fitment
Questions about this part
Will this cart fit my display?
The XPD1U-CH is verified against 11,299 display models from 349 manufacturers. This includes Samsung 400MX, Sony 55BZ30P, LG 100QNED8, and Philips 32PF9730, provided the VESA pattern is between 200 x 200mm and 860 x 510mm.
How much weight can this electric cart hold?
The XPD1U-CH has a weight capacity of 310 lbs (140.6 kg) for the mounted display.
What remote control options are available for height adjustment?
You can use the included integrated control pad, or purchase the PACREM Remote Control Kit or the PACBLU Bluetooth™ Dongle to use the LINAK® smart phone app.
What is the vertical travel range of the lift?
The electric height adjustment mechanism provides 26" (660 mm) of vertical lift.
What is the difference between this and the wall mount version?
This SKU is the floor-cart version (XPD1U-CH); the XSD1U is the version designed for wall mount applications.
