Expandable Wall Mount
Expandable aluminum wall mount for cameras, featuring a telescopic design and 12-inch to 18.3-inch length range

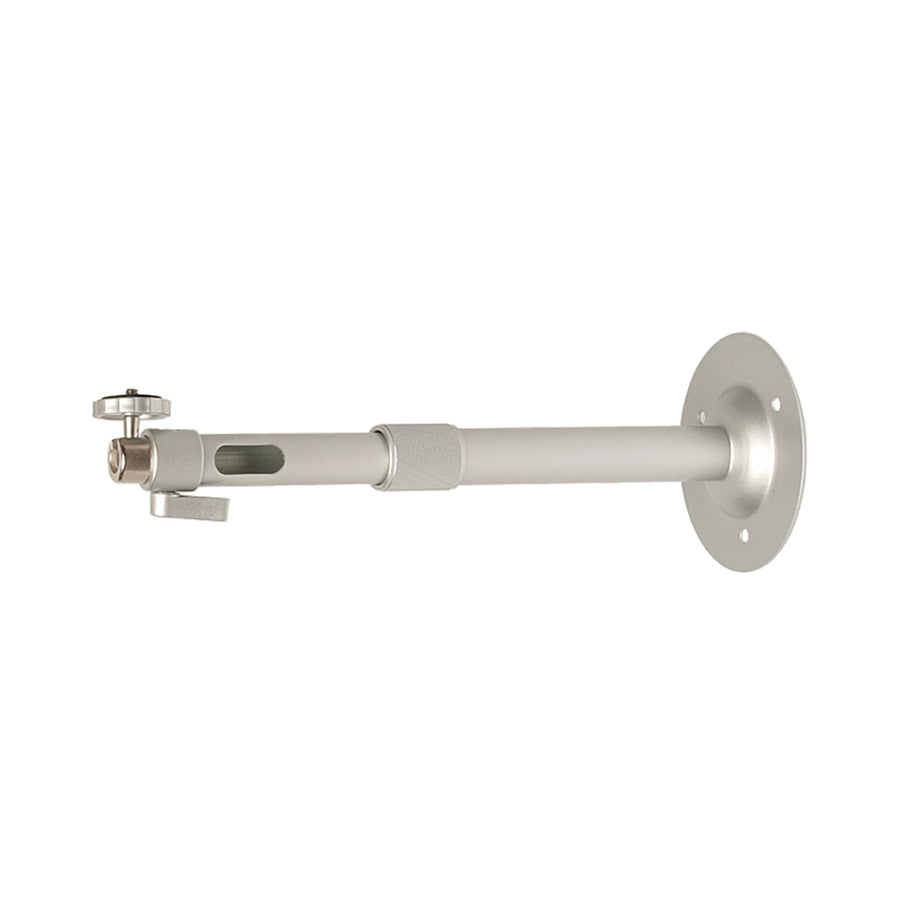

The Vaddio 535-2000-214 is an expandable wall mount designed to provide adjustable positioning for professional cameras in various mounting environments. Constructed from aluminum with a silver/gray finish, this mount utilizes a tubular telescopic design that allows the installation length to be adjusted between 12 inches (305 mm) and 18.3 inches (465 mm). To simplify installation and maintain a clean appearance, the mount includes an integrated cable management pass-through. It is designed for wall applications and utilizes a standard ¼-inch-20 thread mounting screw for securing the camera. This TAA-compliant mount is compatible with a wide range of hardware, including Sony, Logitech Rally, and PTZOptics models. For those requiring different configurations, the 535-2000-215 offers a longer version, while the 535-2000-212 and 535-2000-213 provide standard and universal alternatives respectively.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 18.3 in (46.5 cm) |
| Height | 4.73 in (12 cm) |
| Shipping Dimensions | 12" x 10" x 10" (304.8 x 254 x 254 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Width | 4.73 in (12 cm) |
| Application | Wall |
| Color | Silver |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| TAA Compliant | Yes |
| UPC | 840077500184 |
| Certifications | TAA |
| Warranty | 3 years |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the 535-2000-214 fit my PTZOptics camera?
Yes, it is verified for several PTZOptics models, including the PT 12X-NDI-GY, PT 12X-NDI-WH, PT 12X-SDI-GY-G, and PT 12X-SDI-WH-G.
What is the adjustable length of this Vaddio wall mount?
The mount features a telescopic design that allows you to extend the length from 12 inches (305 mm) up to 18.3 inches (465 mm).
What other camera brands are compatible with this mount?
This mount is compatible with a wide variety of devices from Logitech (Rally, PTZ Pro 2), Sony (BRC-X1000, PCS-XC1), and Aver (CAM520, CAM530, CAM540, EVC150).
How is the camera secured to the mount?
The camera attaches to the mount using a standard ¼-inch-20 thread mounting screw.
Which document should I use for submittals?
You can refer to the Vaddio Camera Mounts Tech Spec (PDF) for detailed technical information regarding installation and specifications.
