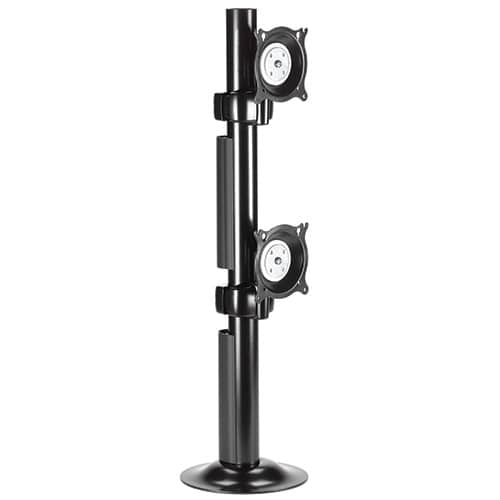

Dual Vertical Grommet Mount - KTG230B
Vertical dual monitor grommet mount for 2 displays, 35 lbs capacity per monitor, with height and tilt adjustability
The Chief KTG230B is a vertical dual monitor grommet mount designed for high-demand environments like broadcast studios, graphic design workstations, and professional control rooms. This 1x2 array configuration allows users to mount two small flat panel monitors in a vertical orientation, supporting either landscape or portrait positioning to suit specific ergonomic workflows. Each monitor is independently adjustable for height and tilt, utilizing Centris Technology to allow for smooth, fingertip positioning. Once the desired angle is reached, the screen stays securely in place. The mount features a heavy-duty, solid steel base and an oversized pole for maximum stability, alongside post-installation leveling rolls to ensure proper alignment. To maintain a clean workspace, integrated cable management utilizes snap-on covers and a cable clip to conceal and protect wiring. This TAA compliant solution is compatible with VESA 75 x 75 mm and 100 x 100 mm patterns.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.3 in (8.4 cm) |
| Equipment Height Range | 10" - 19.3" (25 - 49cm) |
| Height | 29.8 in (75.7 cm) |
| Overall Dimensions | 29.8" x 5.0" x 3.3" (756 x 127 x 84mm) |
| Shipping Weight | 19.25 lbs (8.7 kg) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 5 in (12.7 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 12
| Application | Desk-Tabletop |
| Array Configuration | 1x2 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872098142 |
| Certifications | TAA |
Resources
You'll need these with it
Digital Media Player Mounts (with power brick mount) - PAC261P
PAC261P$113.60

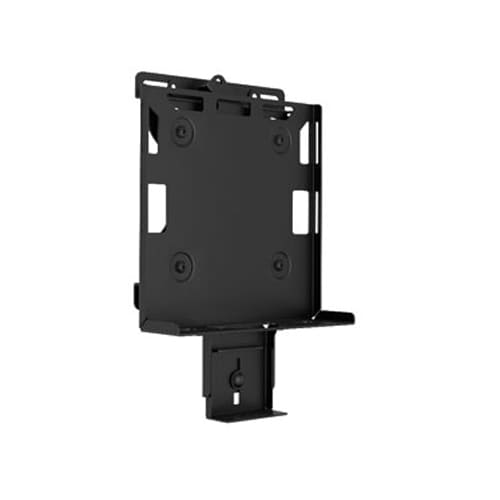

Digital Media Player Mounts (with power brick mount) - PAC261W
PAC261W$138.40
DMP mount Direct-to-Display VESA100 (with power brick mount)
PAC261D$77.60

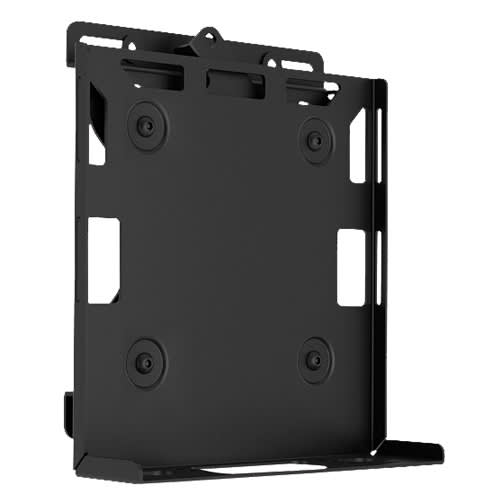

Digital Media Player, CPU and Codec Wall Mount
PAC260W$108.80
DMP Mount - Pole
PAC260P$86.40
DMP Mount Direct-to-Display VESA100
PAC260D$52.00

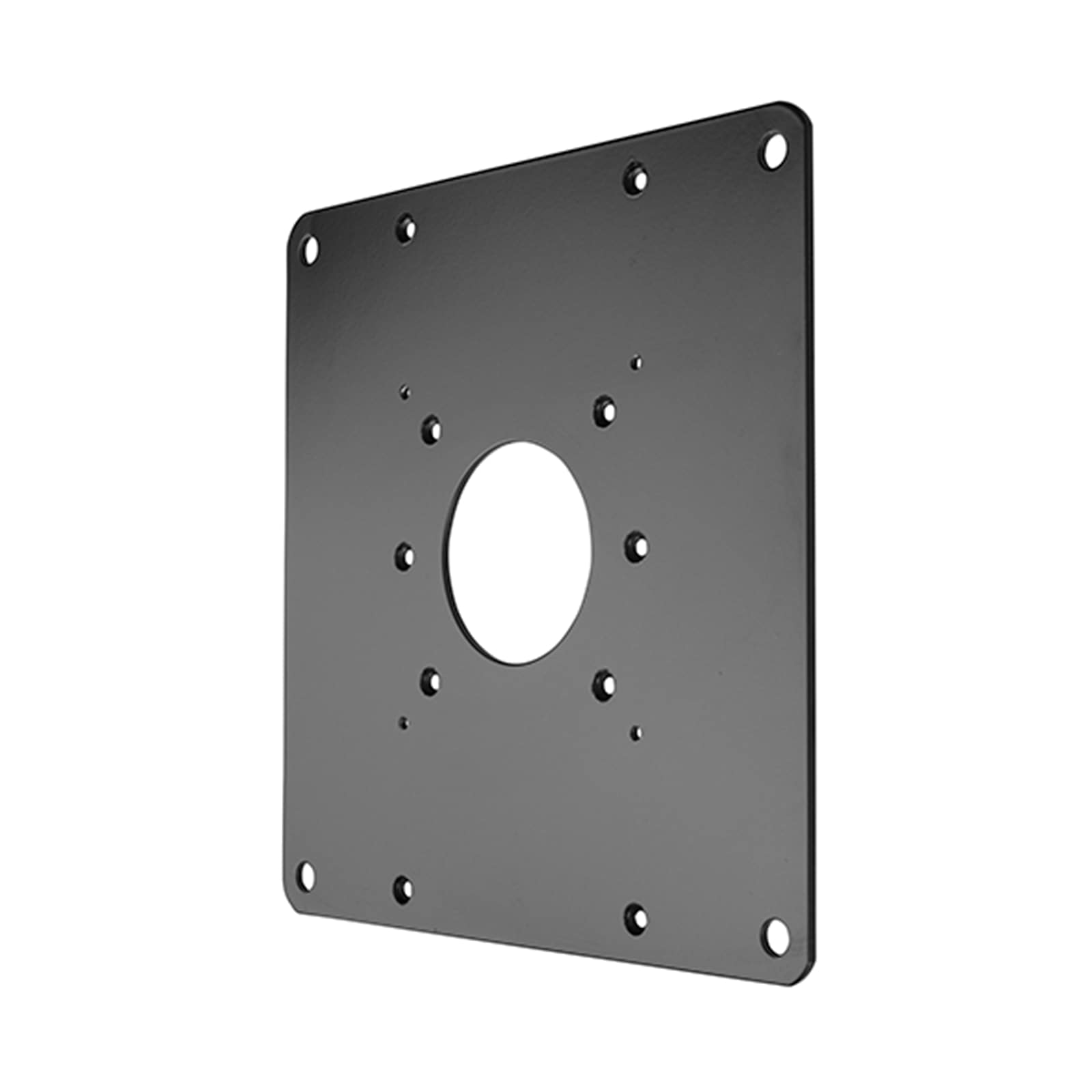

FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80

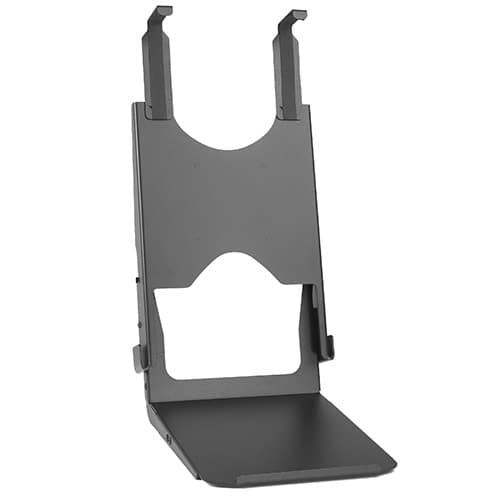

Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60

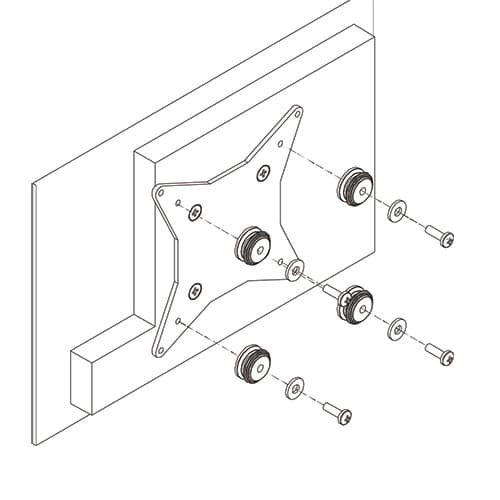

50x50mm VESA Interface Bracket
FSB4073$47.20

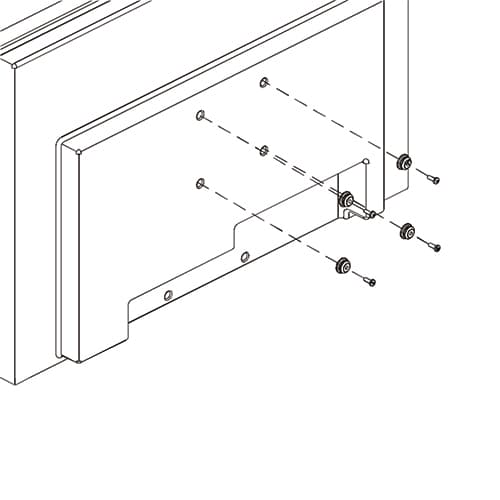

Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Verified fitment
Questions about this part
Will the KTG230B fit my monitors?
It is verified against 8,427 display models from 265 manufacturers, including Samsung 150MP, LG 15LA60, Dell 1504FP, and Sharp 1T-C24FA2KF2NB.
What is the weight capacity for this mount?
The KTG230B supports a weight capacity of 35 lbs (15.9 kg) per monitor.
What thickness does my desk need to be for a grommet mount?
This mount is designed for desktop applications with a thickness range of 0.5" to 5" (13mm - 127mm).
Can I adjust the screens after they are mounted?
Yes, the mount provides independent height adjustment and tilt for each screen, with post-installation leveling rolls to ensure alignment.
What accessories are compatible with this series?
You can integrate various items such as the PAC261P Digital Media Player Mount or the FSB4041 Small Flat Panel Interface Bracket.
